Spagni DOS P30000NC Weigh-Filling Machine • 10952c

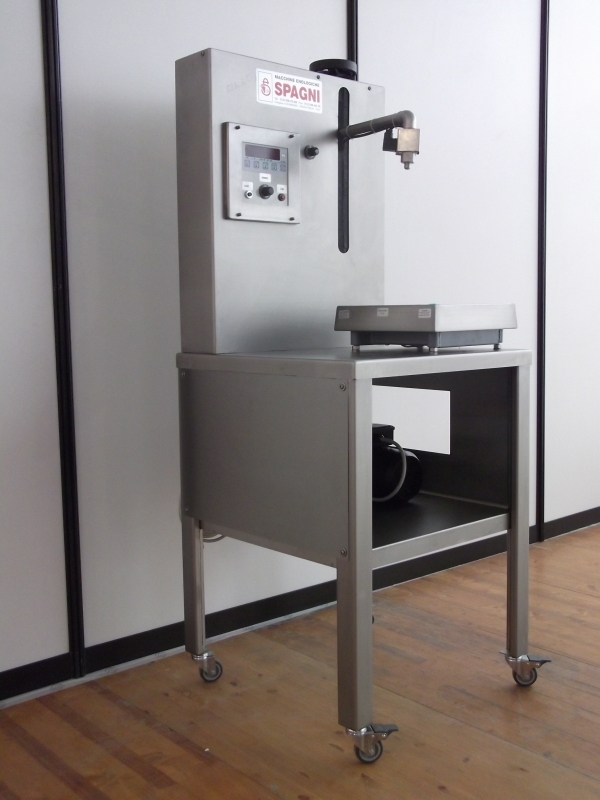

The Spagni DOS P30000NC weigh-filling machine operates across a wide range of container sizes: from small vials to canisters weighing up to 30 kg. It is mounted on a stainless steel trolley with a protective housing.
Principle of operation
The container is weighed during filling, whilst a rubber vane pump operates until the set weight is reached. At the end of the cycle, the machine automatically switches to a second, slower speed for top-up filling; this speed is adjusted via a potentiometer. There are 12 programmes and two anti-drip nozzles: a large one for 3 and 5 litres and a small one for doses up to 150 ml. A protective cover on three sides (NC version) encloses the filling area.
Key specifications
- Dosing range: from 150 ml to 30 litres
- Maximum weight: 30 kg
- Minimum neck diameter: 17 mm
- 12 dosing programmes
- Two spouts: large (3 and 5 litres) and small (up to 150 ml)
- Stainless steel trolley with a three-sided cover
Applications
For manufacturers who need to fill both small and large volumes using a single machine: from vials to 30 kg canisters.
Frequently asked questions
What is the dosing range? From 150 ml to 30 litres.
Is there a slow-fill mode? Yes, the second speed is activated automatically.
How many programmes are there? 12.
