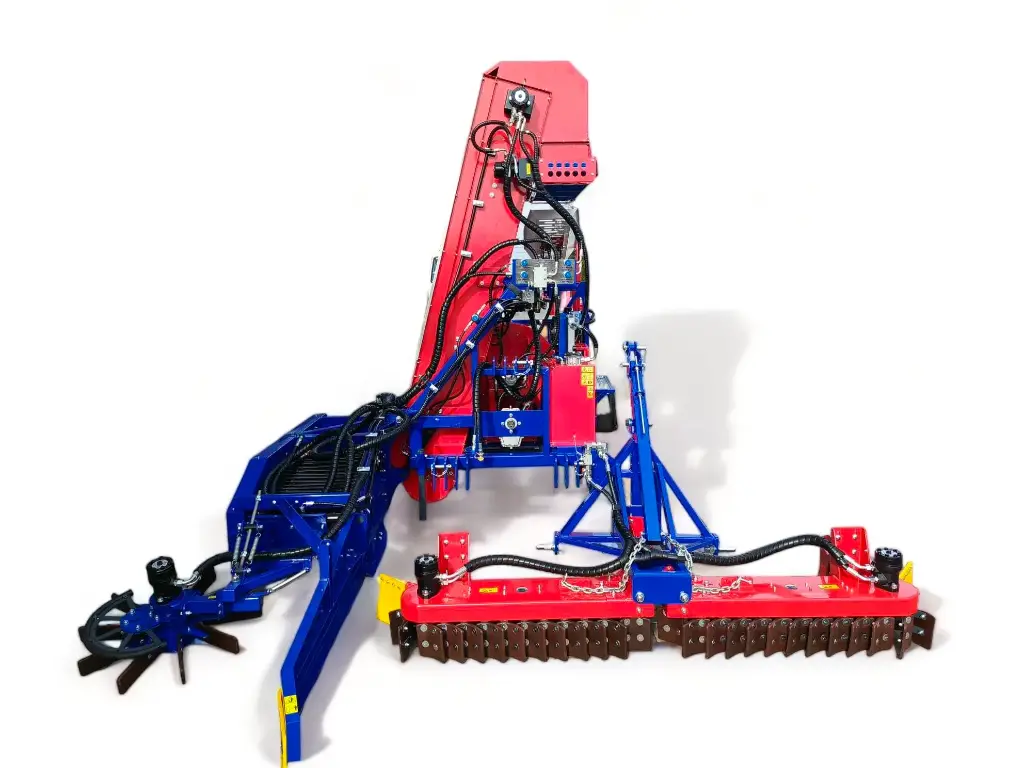

DOM-WID SPARTAN apple harvester
Art.: GD-070090 DOM-WIDThe Polish-made SPARTAN harvester, designed for the mechanical harvesting of apples on large orchards, is the best alternative to manual picking. The Spartan harvester requires a 60 hp orchard tractor to operate. The machine was designed in accordance with suggestions and requirements from orchardists.
The harvester minimises crop loss – special harvesting systems handle the fruit gently, reducing damage and maintaining high harvest quality. It is equipped with a fan that blows the fruit out from under the trees.
The machine is economical to run and easy to maintain – its robust construction and well-thought-out technical solutions ensure a long service life and minimal running costs.
Ergonomic design and intuitive controls make the harvester a reliable tool for both experienced orchardists and those just starting to develop their farms.
There is the option to purchase an additional trailer adapted for harvesting into ‘Big Bag’-type sacks with hydraulic unloading.
The harvester can be fitted with a collection trolley for large-capacity hoppers, as well as a trailer for collecting loose apples.
- Hydraulically extendable under-crown scraper,
- a 0.5-metre-wide vertical conveyor with polyurethane spikes,
- A rotating pusher removes dirt and excess material at the belt junction,
- Dedicated hydraulic power unit with a cooler,
- Electro-hydraulic control valves operated via a control panel installed in the operator’s cab.
Technical specifications
Capacity | up to 10 tonnes per hour |
Power requirement | minimum 60 hp |
Minimum distance between rows | 3.5 m |
Dimensions (L x W x H) | 3.4 x 2.1 x 3.0 m |
Weight | 1,000 kg |
Dimensions of front scraper (L x W x H) | 0.75 × 2.3 × 1.3 m |
Weight of front scraper | 150 kg |
To receive a commercial quotation or further information, please place an order or:
- use the form Send a request
- send an email to: [email protected]
- call the office: +380 95 337 6425, +380 99 717 4185
The standard terms of delivery are FCA Uzhhorod, 15 Babiaka Street (INCOTERMS 2020). Prices in UAH are calculated on the basis of the National Bank of Ukraine’s official exchange rates on the date the payment documents are provided. You can obtain prices for the goods in the required currency (EUR, USD, UAH) from our commercial quotation, or by viewing the price list on our website, where available.
Once you have placed your order, you will receive a quotation for the products you have selected (specifications, prices, terms and delivery options). Only once this has been agreed will we draw up a supply contract and process your order.
