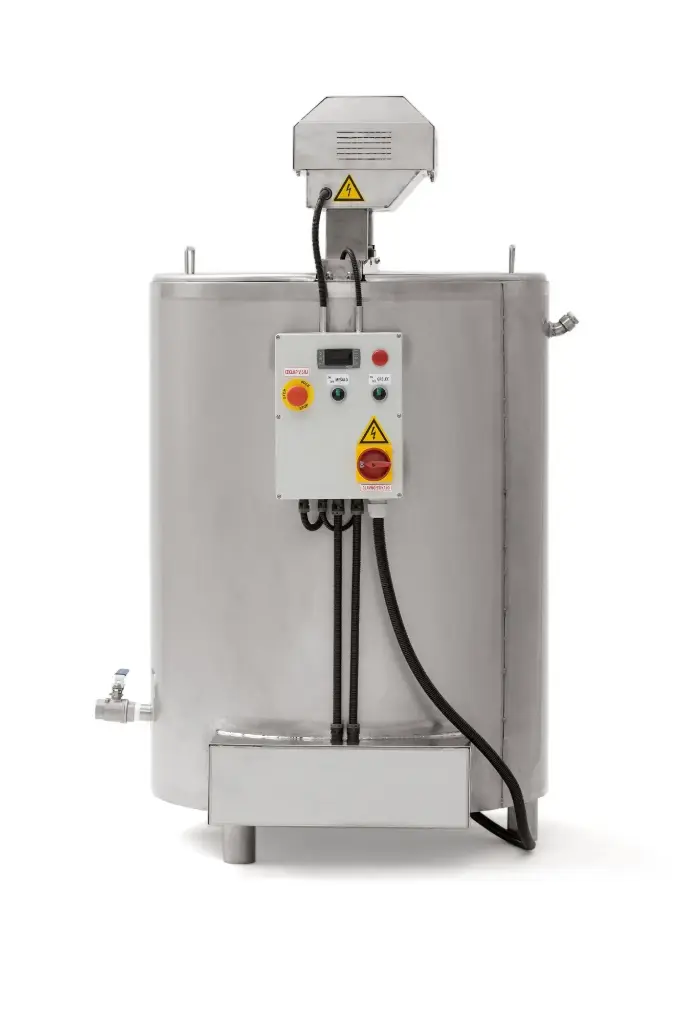

Multifunctional electric kettle
This multi-purpose boiler makes cooking easy and allows for precise control of the cooking process. It is designed for the thermal processing of food by boiling. The boiler is made entirely from AISI 304 (1.4301) stainless steel.
Glycerine oil serves as the intermediate heat transfer medium, with heaters installed within it. The heating elements heat the oil directly, which then transfers the heat to the boiler. The boiler is insulated with mineral wool, ensuring greater energy efficiency. The maximum achievable heating temperature is 110 ºC.
The agitator in the boiler prevents the contents from burning and ensures even cooking.
Standard equipment
- electric heaters
- control unit for temperature regulation and mixer activation
- stirrer for mixing liquids with a three-phase electric motor
- insulation: mineral wool
- connections and a ⁵⁄₄'' ball valve
Optional equipment
- more powerful motor (0.18 – 1.5 kW)
- silicone imitation
- valves – DN, WG, Garola, TC, Macon
- Wheels
Type | 100 l | 200 litres | 300 litres | 600 litres |
Useful boiler capacity (l) | 100 | 200 | 300 | 600 |
Weight of multi-purpose boiler (kg) | 102 | 145 | 195 | 320 |
Boiler height (cm) | 120 | 150 | 150 | 190 |
Boiler layout diagram (width × length in cm) | 57×70 | 64×80 | 78×95 | 92×120 |
Electric motor power (kW) | 0.25 | 0.25 | 0.25 | 0.37 |
Electric heater power (kW) | 9 | 2×9 | 2×9 and 1×6 | 2×9 and 1×6 |
Electrical connection (V) | 400 | 400 | 400 | 400 |
Heating oil | glycerine | glycerine | glycerine | glycerine |
Mixer speed (rpm) | 20 | 20 | 20 | 20 |
To receive a commercial quotation or further information, please place an order or:
- use the form Send a request
- send an email to: [email protected]
- call the office: +380 95 337 6425, +380 99 717 4185
The standard terms of delivery are FCA Uzhhorod, 15 Babiaka Street (INCOTERMS 2020). Prices in UAH are calculated on the basis of the National Bank of Ukraine’s official exchange rates on the date the payment documents are provided. You can obtain prices for the goods in the required currency (EUR, USD, UAH) from our commercial quotation, or by viewing the price list on our website, where available.
Once you have placed your order, you will receive a quotation for the products you have selected (specifications, prices, terms and delivery options). Only once this has been agreed will we draw up a supply contract and process your order.
