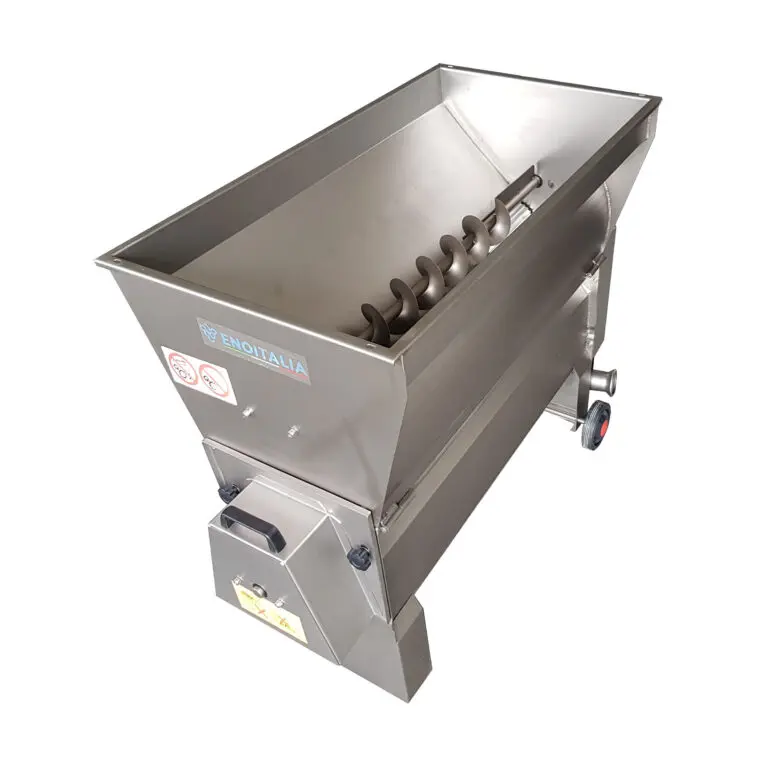

Separator for the Granat 3000

https://ar-tech.com.ua/web/image/product.template/75/image_1920?unique=23ac302
Pomegranate separator. The machine is designed to separate the seeds from the skin. It is fitted with a pair of food-grade aluminium rollers and a separating screen. The feed hopper is fitted with a dosing screw. At the outlet end, the machine is fitted with blades that improve the pulping of the fruit.

The crushing action of the rollers, combined with the centrifugal force of the rotating shaft, ensures effective separation of the pomegranate peel.

 The separator is fitted with a Euro 50 volumetric pump on a trolley.
The machine is manufactured entirely from AISI 304 stainless steel;
The separation basket has 8 mm holes and is 1000 in length; the separation shaft is made of coated stainless steel.
Loading height from the ground: 900 mm.
Length: 1280 mm.
Technical specifications:

Capacity
3,000–3,300 kg/h
Mains specifications
380 V
Installed power
1.8 kW
Dimensions (L x W x H)
1280 × 900 × 900 mm
Approx. weight, kg
150 kg

incl. EX ПДВ 0%   |  price for info

Price on request

This combination does not exist.

To receive a commercial quotation or further information, please place an order or:

The standard terms of delivery are FCA Uzhhorod, 15 Babiaka Street (INCOTERMS 2020). Prices in UAH are calculated on the basis of the National Bank of Ukraine’s official exchange rates on the date the payment documents are provided. You can obtain prices for the goods in the required currency (EUR, USD, UAH) from our commercial quotation, or by viewing the price list on our website, where available.

Once you have placed your order, you will receive a quotation for the products you have selected (specifications, prices, terms and delivery options). Only once this has been agreed will we draw up a supply contract and process your order.
