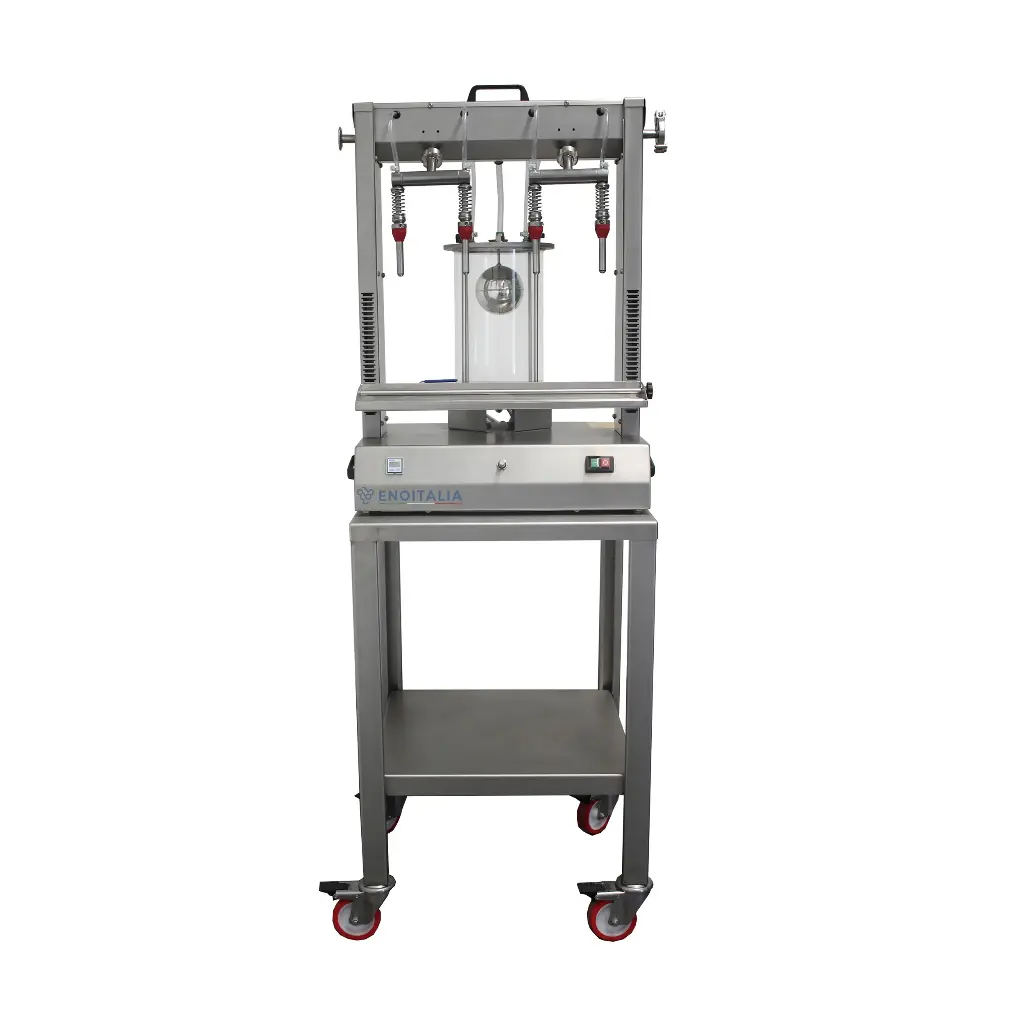

Vacuum filler

A vacuum filler, made entirely of stainless steel with high-quality components, suitable for intensive use. The machine is fitted with an electric vacuum system inside the containers, ensuring gentle extraction of the liquid being filled without the use of pumps and without oxidation issues. The filling speed is adjustable.

Constructed from AISI 304 stainless steel.
Vacuum pump.
Digital settings display
Filling speed control.
Electrical control panel with electronic switch.
Filling head with a diameter of 15 mm.
DIN 15 connection for pipework.
Storage tank with stainless steel float and valve for complete drainage.
Maximum bottle height: 330 mm.
Maximum internal bottle height: 80 mm.

Technical specifications

Capacity (depends on the raw material)	up to 500 l/h
Filling head	4 pcs.
Bottles	0.2–5 litres
Power	220 V, 50 Hz
Dimensions (L x W x H)	600 × 800 × 1100 mm
Weight approx.	40 kg

Price on request
