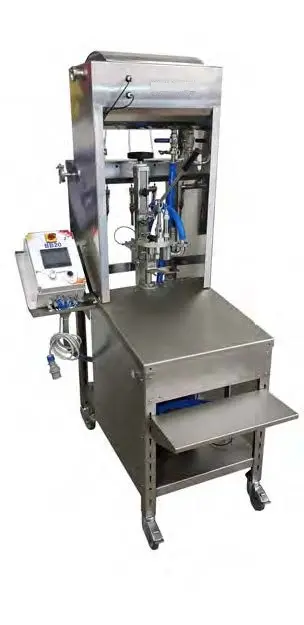

Combined filling of bottles and Bag-in-Box containers
Standard configuration:
EURO 30 pump
- Stainless steel induction flow meter.
- Silent compressor
- Drip-free dispensing valve
- Electronic level sensor (without control panel)
- DN25 connection
- 4 x 15 mm filling heads
- Bimetallic thermometer
Technical specifications
Filling capacity (depends on the product) | up to 670 l/h |
Bag-in-Box filling capacity (depending on the product) | - 240 units/hour for 5-litre bags, - 180 units/hour for 10-litre bags, - 130 units/hour for 20-litre bags (capacity depends on the user, vacuuming time and nitrogen injection time). |
Buffer
capacity | 66 l |
Mains specifications | 220 V |
Rated power | 1.1 kW |
Dimensions (L x W x H) | 860 × 1800 × 500 mm |
Weight approx. | 148 kg |
To receive a commercial quotation or further information, please place an order or:
- use the form Send a request
- send an email to: [email protected]
- call the office: +380 95 337 6425, +380 99 717 4185
The standard terms of delivery are FCA Uzhhorod, 15 Babiaka Street (INCOTERMS 2020). Prices in UAH are calculated on the basis of the National Bank of Ukraine’s official exchange rates on the date the payment documents are provided. You can obtain prices for the goods in the required currency (EUR, USD, UAH) from our commercial quotation, or by viewing the price list on our website, where available.
Once you have placed your order, you will receive a quotation for the products you have selected (specifications, prices, terms and delivery options). Only once this has been agreed will we draw up a supply contract and process your order.
