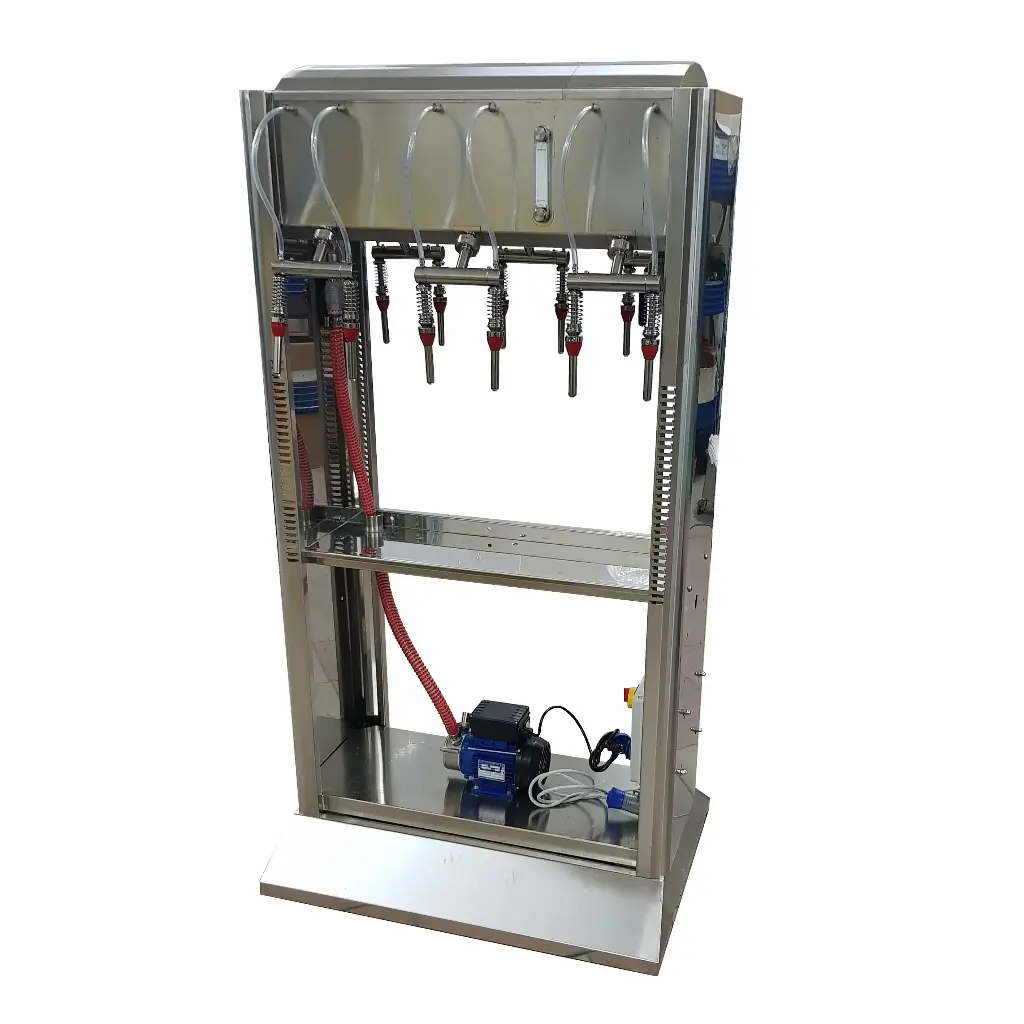

R12 gravity-fed bottle filler
A nitrogen saturation valve is available. Nitrogen injection into the bottles takes place before filling. Simple to use; all that is required is a connection to a nitrogen cylinder.
- Filling head 15 mm, DIN 15 connection.
- Discharge valve made from AISI 316.
- Conical gaskets are used for filling. Maximum bottle neck diameter 27 mm. Up to 40 mm on request. For diameters over 40 mm, flat gaskets are used.
- Special filling heads for bottles with a neck diameter of up to 60 mm and a neck height of 120 mm are available on request.
- Adjustable and tiltable bottle stand.
- Adjustable legs.
- Mechanical level sensor.
Options:
- Pump.
- Electronic level sensor with connection to the pump.
- Filling device for PET containers.
- System flushing device.
- Filter with cardboard inserts.
Technical specifications
Capacity (depending on the product) | up to 1,960 l/h |
Buffer
capacity | 66 litres |
Mains specifications | 220 V |
Rated power | 0.37 kW |
Dimensions (L x W x H) | 860 × 1800 × 1100 mm |
Weight approx. | 120 kg |
To receive a commercial quotation or further information, please place an order or:
- use the form Send a request
- send an email to: [email protected]
- call the office: +380 95 337 6425, +380 99 717 4185
The standard terms of delivery are FCA Uzhhorod, 15 Babiaka Street (INCOTERMS 2020). Prices in UAH are calculated on the basis of the National Bank of Ukraine’s official exchange rates on the date the payment documents are provided. You can obtain prices for the goods in the required currency (EUR, USD, UAH) from our commercial quotation, or by viewing the price list on our website, where available.
Once you have placed your order, you will receive a quotation for the products you have selected (specifications, prices, terms and delivery options). Only once this has been agreed will we draw up a supply contract and process your order.
