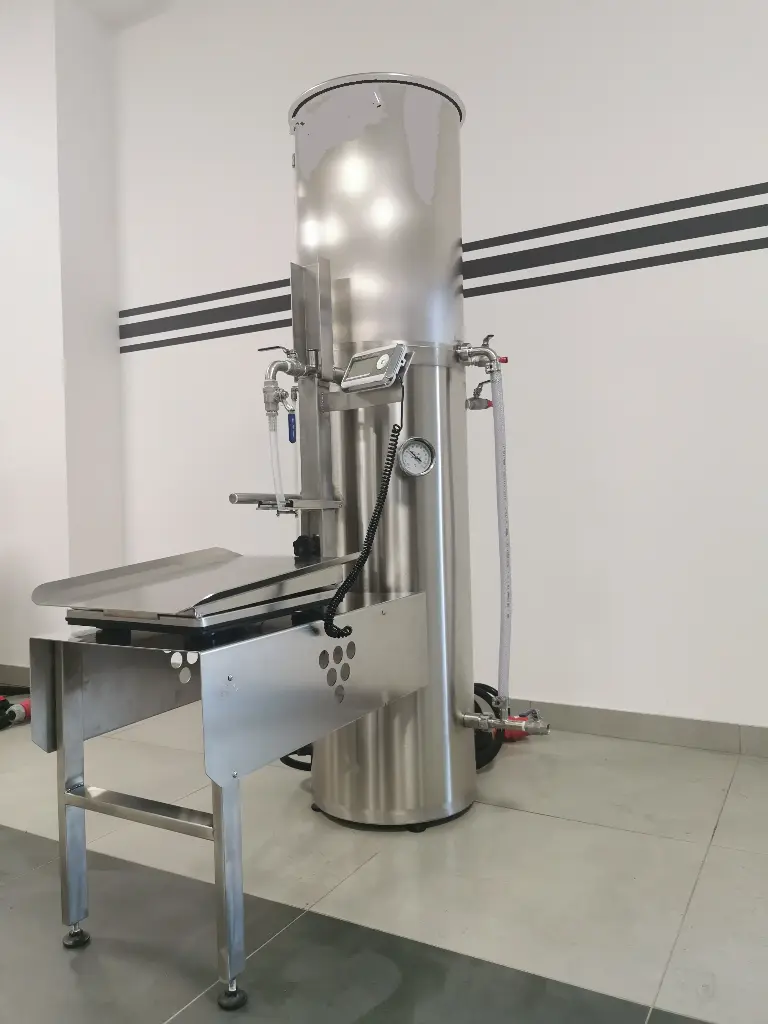

RE200 Electric Pasteuriser

https://ar-tech.com.ua/web/image/product.template/55/image_1920?unique=23ac302

The pasteuriser is designed for the pasteurisation and filling of juices into glass bottles or Bag-in-Box containers.

Standard configuration:

  • 100-litre tank (water) + 70-litre tank (juice)
  • Coiled tube
  • Analogue water thermometer
  • Filling device for two bottles or Bag-in-Box
  • Digital juice thermometer
  • Adjustable feet
  • 1/2" inlet ball valve for water
  • 1/2" inlet ball valve for juice
  • Water level gauge
  • Juice level gauge
  • Water level sensor
  • 2 x 9 kW electric heaters
  • Control panel for temperature regulation (IP65 certified)

Technical specifications:

Capacity: up to 200 l/h

Diameter: 600 mm

Height: 1650 mm

Weight: 91 kg

Length: standard 720 mm, with a stainless steel worktop 1080 mm.

 Material: stainless steel AISI304

 Power supply: 18.0 kW, 400 V, 32 A



incl. EX ПДВ 0%   |  price for info

Price on request

This combination does not exist.

To receive a commercial quotation or further information, please place an order or:

The standard terms of delivery are FCA Uzhhorod, 15 Babiaka Street (INCOTERMS 2020). Prices in UAH are calculated on the basis of the National Bank of Ukraine’s official exchange rates on the date the payment documents are provided. You can obtain prices for the goods in the required currency (EUR, USD, UAH) from our commercial quotation, or by viewing the price list on our website, where available.

Once you have placed your order, you will receive a quotation for the products you have selected (specifications, prices, terms and delivery options). Only once this has been agreed will we draw up a supply contract and process your order.
