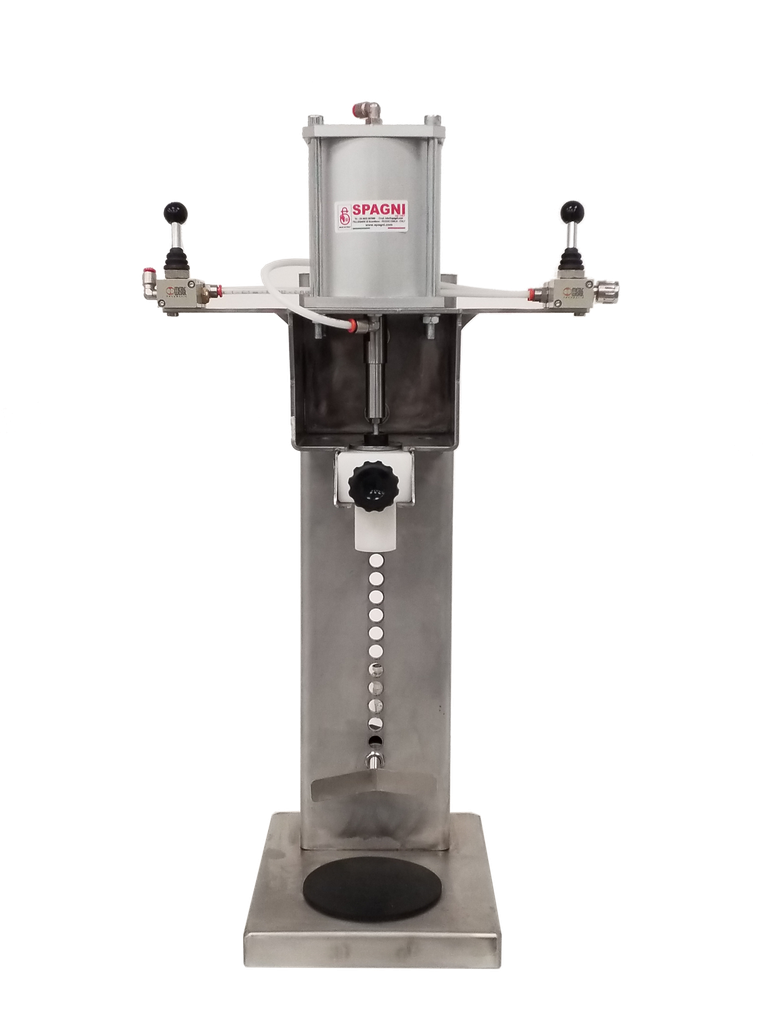

Corking unit Spagni AIR RASO • 20591a

AIR RASO — a compact, fully pneumatic Spagni corking machine for round corks. Its small size and light weight make it easy to move around, making it ideal for small wineries and bottling plants.

How it works

The cork is manually loaded into the cassette, after which two pneumatic actuators insert it into the bottle neck by compression. The machine is powered by a compressor via a pressure reducer, which is included in the kit. Compared to the AIRSUG, it is even smaller and simpler: there is no hopper, and corks are fed manually; however, its output is around 300 bottles per hour.

Key specifications

• Type: fully pneumatic corking machine
• Cork: flat, up to 24 × 45 mm (cork, agglomerate, synthetic)
• Output: approximately 300 bottles per hour
• Dimensions: 410 × 300 × 690 mm
• Weight: 15 kg
• Frame: stainless steel
• Pressure regulator included; compressor (40 litres or more recommended) not included

Applications

Corking bottles with smooth corks made from natural cork, agglomerated cork and synthetic materials in small and medium-sized production facilities for wine and other beverages in glass containers.

Frequently asked questions

Is a compressor required? Yes, one with a capacity of 40 litres or more is recommended; it is not included in the set, but the pressure regulator is.

Which stoppers are suitable? Flat stoppers up to 24 × 45 mm made of natural cork, agglomerate or synthetic material.

What is the throughput? According to the manufacturer, around 300 bottles per hour; the corks are inserted manually.
