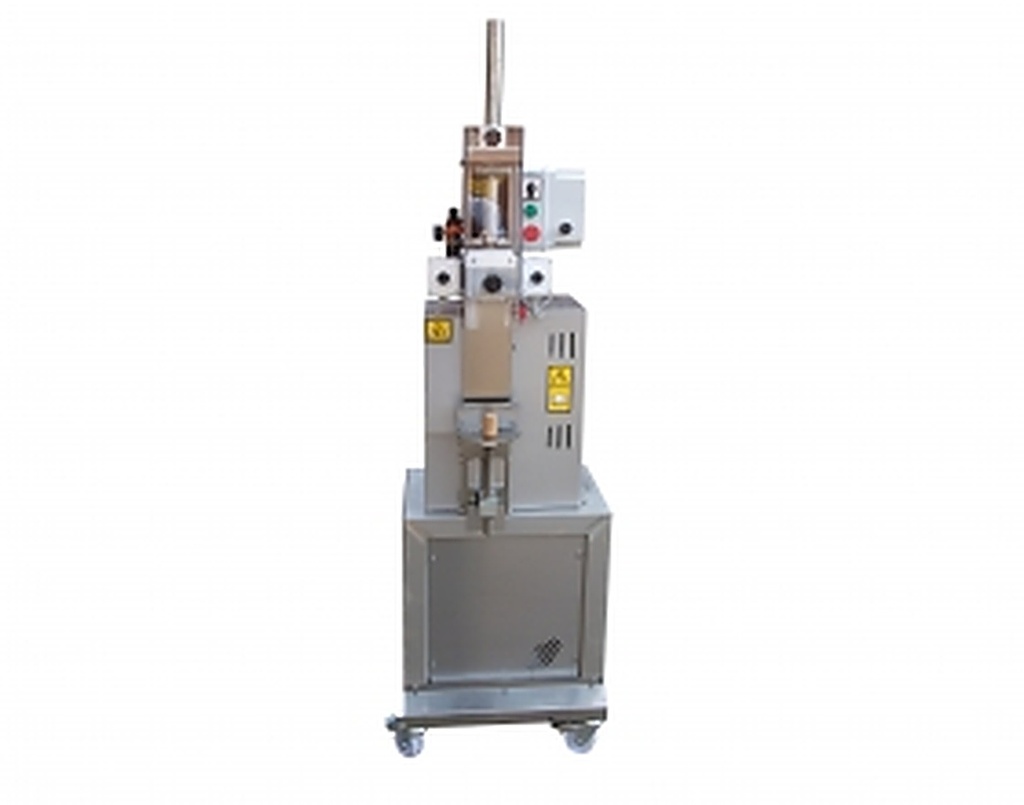

Corking unit Spagni BAMBY • 20980ta
BAMBY is a Spagni electro-pneumatic semi-automatic corking machine on a trolley. It is designed for producers who use both mushroom corks for sparkling wines and flat corks.
How it works
The cork is clamped by four stainless steel jaws and inserted into the bottle neck; the machine is activated by pressing two buttons simultaneously. Corks are fed from a 10–11-piece feed tube and are positioned manually. This distinguishes the BAMBY from the pneumatic AIRSUG and AIR RASO models, which operate only with flat corks: the BAMBY can cork both mushroom-shaped and flat corks. The motor is three-phase, whilst an inverter is available for a single-phase 230 V supply. In the Spagni price list, the machine is recommended for use in combination with the PM04 and PM05 muesli machines.
Key specifications
- Type: electro-pneumatic semi-automatic machine on a trolley
- Stoppers: mushroom and flat cork stoppers
- Corking time: 3 s
- Maximum bottle height: 390 mm
- Power: 1.1 kW, voltage: 380 V (230 V inverter — optional)
- Trolley and frame: AISI 304 stainless steel
- Cork feed: stainless steel tube for 10–11 corks, hopper — available to order
Applications
Corking of sparkling wine bottles with mushroom corks and still wine bottles with standard corks in small and medium-sized production facilities. For sparkling wine, a mousselier is required after corking.
Frequently asked questions
What voltage is required? The machine is three-phase, 380 V; an inverter is available for a single-phase 230 V supply.
Is it suitable for sparkling wine? Yes, BAMBY works with mushroom-shaped corks; a mousseline machine is then required; Spagni’s price list combines it with the PM04/PM05.
How many corks can the feeder hold? The stainless steel feed tube is designed to hold approximately 10–11 corks, which are fed manually.
