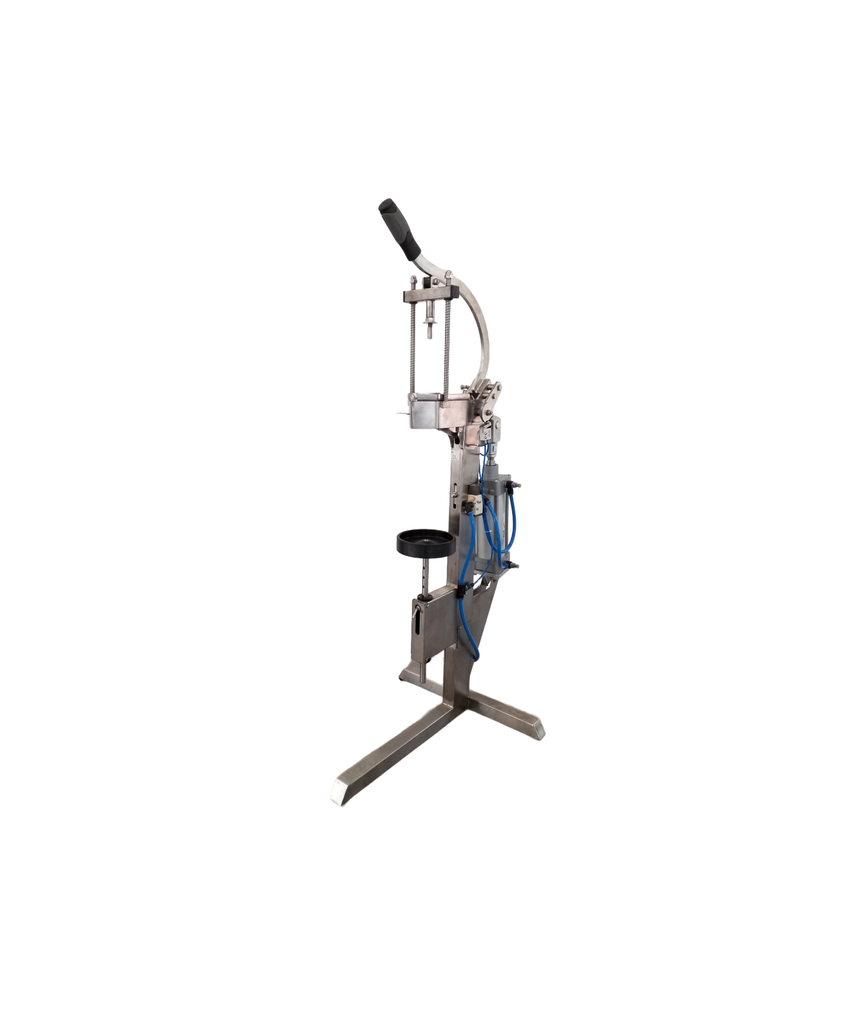

Corking unit Spagni JUGO PNEU • 20503e

JUGO PNEU — a semi-automatic Spagni pneumatic corking machine for mushroom corks. Designed for small and medium-sized wineries, particularly producers of sparkling wines.

How it works

The machine is operated by a pneumatic lever: compressed air does the bulk of the work, so the strain on the operator is minimal. The piston speed is adjustable, allowing the settings to be tailored to the specific cork and bottle. Unlike the manual JUGO and REGINA models, the force is generated by a pneumatic system; it differs from the BAMBY in that it has a simpler drive mechanism without an electric motor: all that is required is a compressor.

Key specifications

• Type: semi-automatic pneumatic corking machine with lever
• Corks: cork, synthetic and agglomerate mushroom-shaped corks, d 24–30.5 mm, height up to 48 mm
• Bottle capacity: 0.75–1.5 l
• Piston speed adjustment: yes
• Frame: stainless steel

Application

Corking of sparkling wine bottles with mushroom-shaped corks made of natural cork, synthetic material or agglomerate. After corking, a muselet is fitted to the cork.

Frequently asked questions

Which corking machine is suitable for sparkling wine with mushroom-shaped corks? Among the Spagni models, these are the JUGO PNEU, as well as the BAMBY, REGINA and SUPERMAXIM; a muselet is also required.

Is a compressor required? Yes, the machine is pneumatic; a compressor is not included in the set.

Which bottles are suitable? Those with a capacity of 0.75–1.5 litres; mushroom-shaped corks with a diameter of 24–30.5 mm and a height of up to 48 mm.
