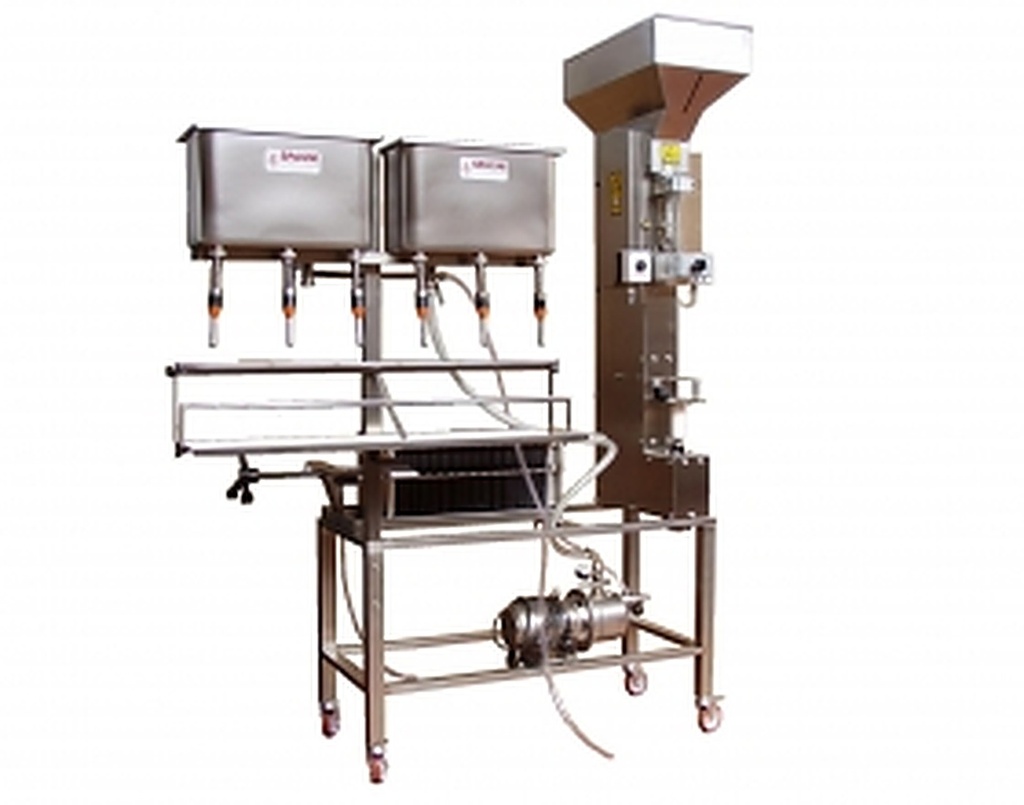

Spagni RI·M AIRSUG Filling and Sealing Machine
RI·M AIRSUG — Spagni monoblock: a pump, a linear gravity filler and an AIRSUG pneumatic capping unit for bottles with flat stoppers. The bottles and stoppers are loaded manually.
Principle of operation
A sump fitted with a 230 V electric pump and a 20 × 20 cm cardboard filter feeds the liquid through 14 mm diameter nozzles; a mechanical float maintains the liquid level. The bottle is then capped by the AIRSUG: the stopper is gripped by four jaws and inserted into the neck. Stoppers are fed manually from a column, approximately 10 at a time; a hopper is optional. Models differ in the number of filling stations (3, 4 or 6).
Key specifications
- Composition: RI MC filling unit (230 V pump, 20 × 20 cm filter) + AIRSUG pneumatic system
- Nozzles: 14 mm diameter, flow rate up to 130 l/h per nozzle (for water)
- Cork: flat, up to 27 mm, four jaws
- Maximum bottle height: 350 mm
- Compressor: supplied separately
- Models: RI 3M, 4M, 6M
Applications
Filling and capping of non-carbonated liquids (wine, oil) into glass bottles with flat stoppers made of cork, agglomerate or synthetic material.
Frequently asked questions
What type of stopper is suitable? Flat stoppers with a diameter of up to 27 mm: cork, agglomerate or synthetic.
Is the stopper feed automatic? No, it is fed manually from a column holding approximately 10 pieces; a hopper is optional.
Is a compressor required? Yes, sold separately.
