Spagni BERNA cardboard filter
The Spagni BERNA cardboard filter is a tabletop model designed for 20 × 20 cm cardboard sheets, suitable for small volumes and domestic use.
How it works

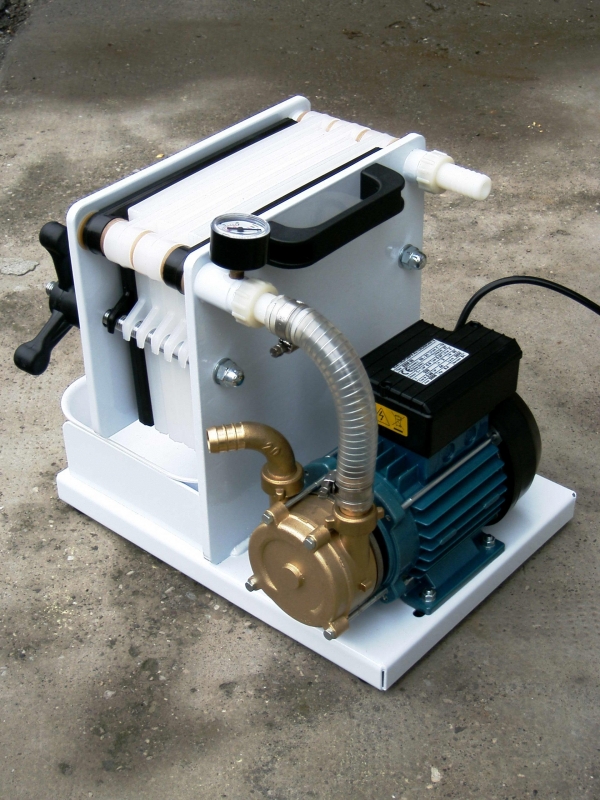

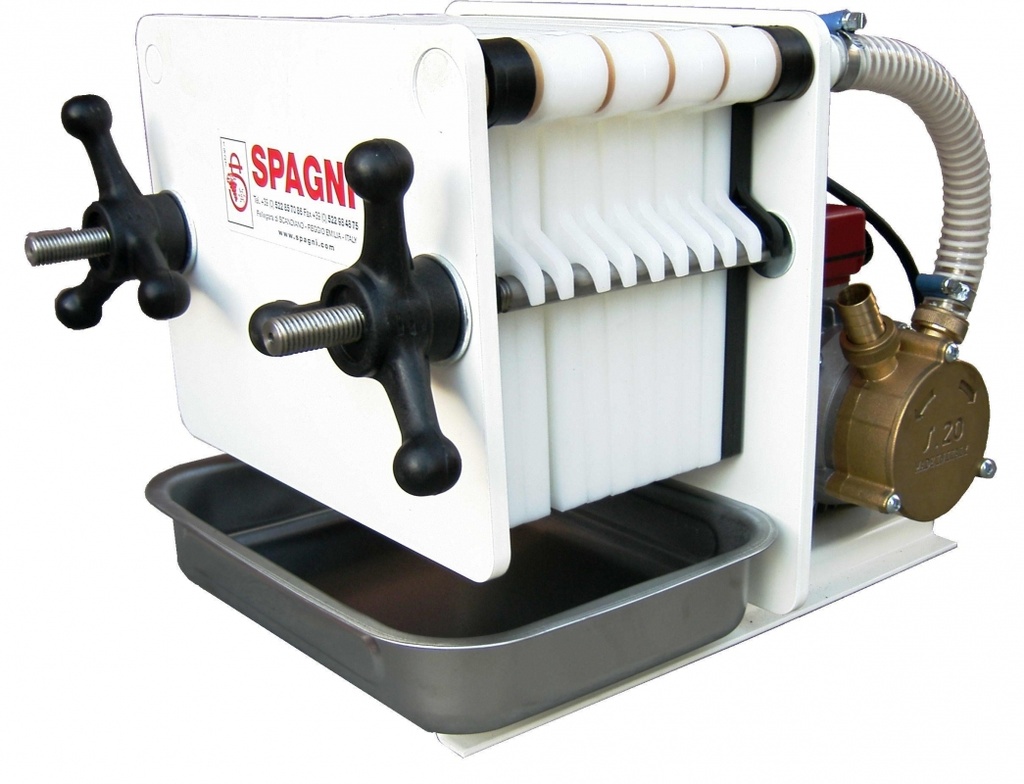

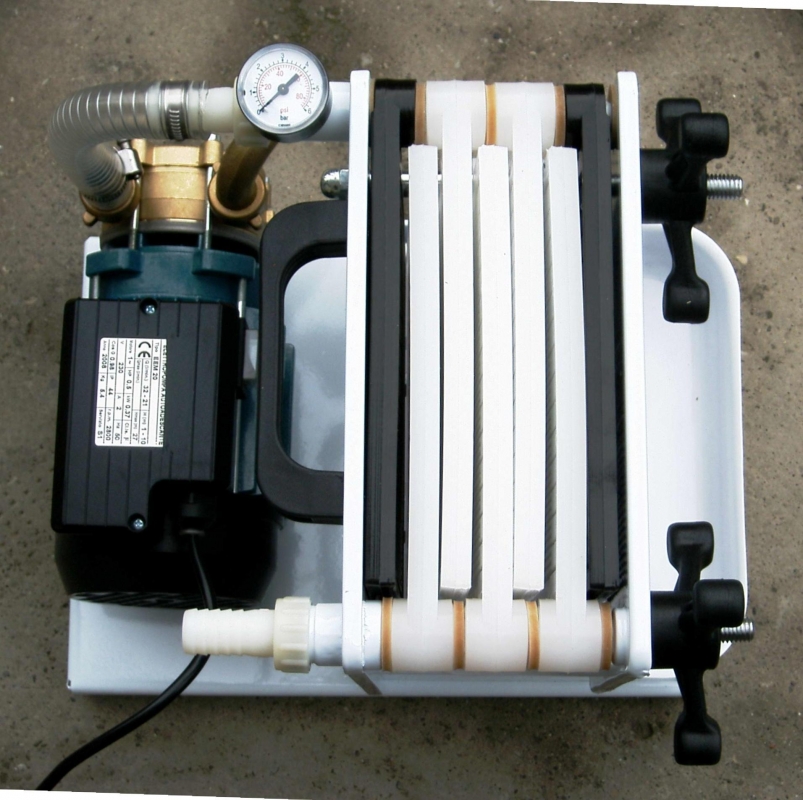

The liquid passes through a stack of cardboard sheets, which are compressed by two handwheels. The frame is made of painted steel, the plates are made of food-grade plastic, there is a plastic drip tray, a pressure gauge at the inlet, and Ø20 mm plastic fittings. Models 06 and 10 are available in two versions: S without a pump and E with a 230 V bronze electric pump. This model differs from the SYDNEY and MONACO models in that it has a painted steel frame and a simpler configuration.
Key specifications
- Carton size: 20 × 20 cm
- Models: 06 and 10; S version (without pump) and E version (with pump)
- Power supply (E version): 230 V, 50 Hz
- Frame: painted steel
- Plates: food-grade plastic
- Fittings: plastic, Ø20 mm
Applications
For home winemakers and enthusiasts who do not require a stainless steel frame. Please check with the manager regarding the number of cartons and filtration area.
Frequently asked questions
How does the S model differ from the E model? The S model comes without a pump, whilst the E model comes with a 230 V bronze electric pump.
What is the filtration area? Please check with the manager.
Is there a pressure gauge? Yes, on the inlet.
