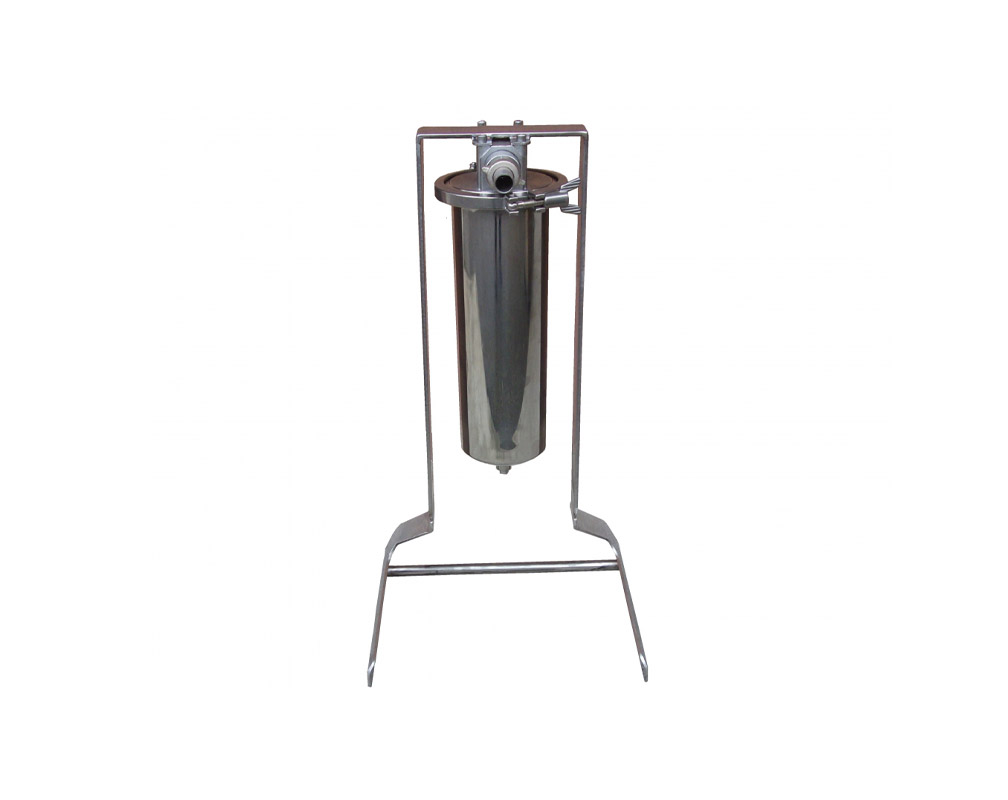

Spagni MXC10 housing filter
The Spagni MXC10 housing filter — an AISI 316 stainless steel housing for the pre-filtration of wine, vinegar, oil and other food-grade liquids. Operates under vacuum and under pressure.
Principle of operation
The liquid passes through a 10″ stainless steel cartridge housed in a casing with an electropolished lid; the flask is fitted with a drain plug. The filter does not replace clarification or sterilisation, but protects subsequent stages. There are two versions: the ‘Housing’ and the ‘FULL’ – featuring a stainless steel frame, a Ø19 mm connection, a manometer/vacuum gauge (−1…+5 bar) and a 50 µm mesh cartridge. It differs from the MXS180 bag filter in its cartridge design.
Key specifications
- Material: AISI 316 stainless steel
- Cartridge: 10″, D64, bore 28, H248 mm
- Connection: 1″ BSP, internal thread
- Cartridges: stainless steel 10, 25, 40, 50 µm
- FULL: frame, Ø19 fitting, manometer/vacuum gauge, 50 µm cartridge
Applications
For wineries and oil production facilities as a preliminary purification stage. Maximum pressure is not published; please check with your manager.
Frequently asked questions
Which cartridge is required? A 10″ stainless steel cartridge with a flat mounting; the FULL version features a 50 µm mesh.
Pressure? Not published; please enquire.
How does the FULL version differ? It includes a frame, a fitting, a pressure/vacuum gauge and a cartridge.
Для отримання комерційної пропозиції потрібно відправити запит або:
- use the form Send a request
- send an email to: [email protected]
- call the office: +380 95 337 6425, +380 99 717 4185
The standard terms of delivery are FCA Uzhhorod, 15 Babiaka Street (INCOTERMS 2020). Prices in UAH are calculated on the basis of the National Bank of Ukraine’s official exchange rates on the date the payment documents are provided. You can obtain prices for the goods in the required currency (EUR, USD, UAH) from our commercial quotation, or by viewing the price list on our website, where available.
