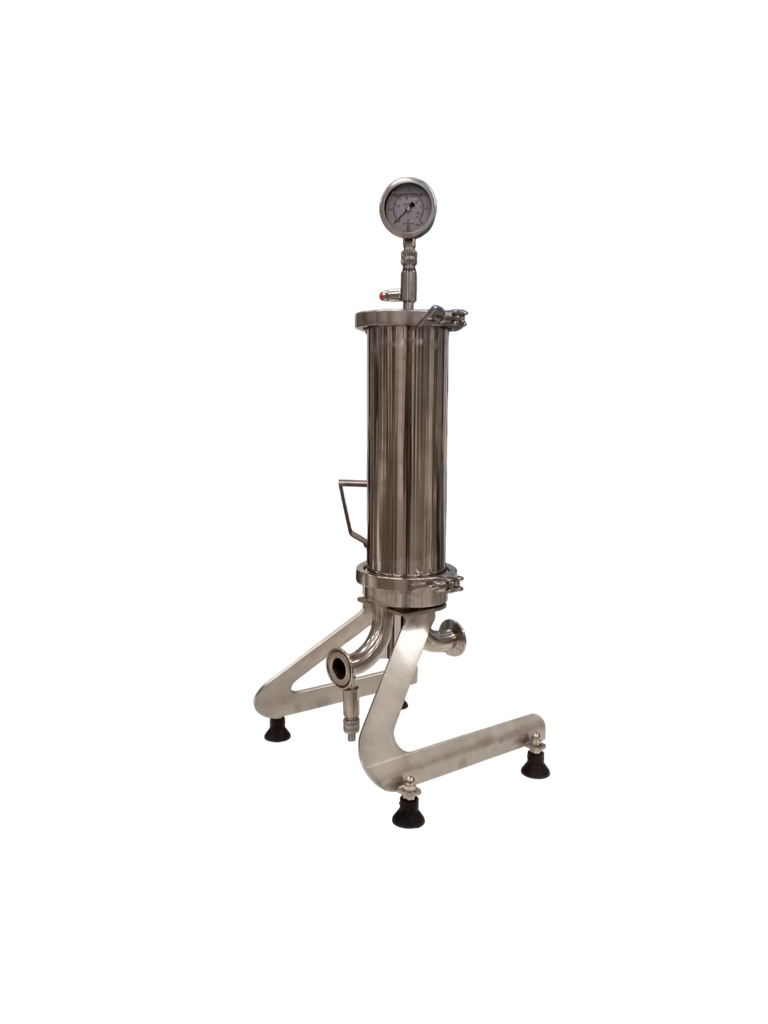

Spagni PDX column filter
The Spagni PDX column filter features a stainless steel housing with a single mirror-polished flask for 10″ (PDx10.1) or 30″ (PDx30.1) cartridges.
How it works
The liquid passes through the cartridge in the flask, removing yeast cells, bacteria and colloidal particles. The housing is simpler than that of the PDXV: it has straight 1½″ Tri-Clamp inlet and outlet connections, a tap and a pressure gauge on the lid, and no disc valves. Cartridges are sold separately; an external pump is required.
Key specifications
- Cartridge height: 10″ or 30″
- Flask: single, mirror-polished, with a 3″ Tri-Clamp lock
- Connections: 1½″
- Maximum pressure: 4 bar
- Filtration fineness: up to 0.25 µm depending on the cartridge
- Frame: stamped sheet metal
Applications
For the microfiltration of wine, beer and oil prior to bottling, as a simpler single-flask solution.
Frequently asked questions
How does the PDX differ from the PDXV? The PDXV has disc valves and 1–3 flasks.
Pressure? Up to 4 bar.
Is there a pump? No, an external pump is required.
