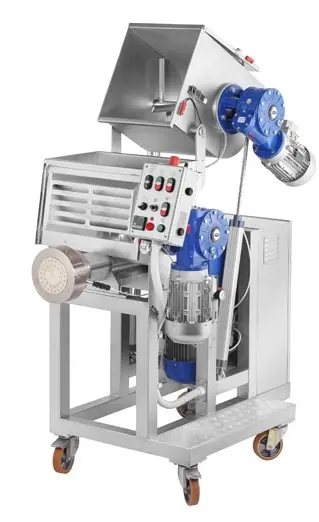

La Monferrina P100 pasta extruder
Art.: GD-020225 La-MonferrinaThe P100 extruder is an automatic and reliable machine. It can knead any type of flour and produce both long and short pasta shapes, thanks to the quick change of dies. This is a medium-capacity machine.
The extruder is easy to operate and is made entirely of stainless steel; it is fitted with a control panel in accordance with current safety regulations.
Scope of supply:
- 1 bronze die (to be selected from the catalogue);
- 2 dough mixers;
- one pasta sieve;
automatic cutting unit with variable speed control and stainless steel blades (for short pasta only);
- a fan (for drying the pasta);
- stainless steel press trolley on wheels;
- water cooling
Technical specifications
Capacity, max. | 90–100 kg/hour |
Dough mixer capacity | 30 kg |
Die size | 153 mm |
Rated power | 7.6 kW, 380 V, 50 Hz |
Dimensions (L x W x H) | 815 × 1600 × 1600 mm |
Approx. weight, kg | 372 kg |
How it works
The kneading tank mixes flour or semolina with liquid; the screw feeds the dough to the extrusion head with the die and an automatic variable-speed cutter cuts short pasta. The upper tank tilts pneumatically, head pressure is monitored and an inverter drives the motor. Head and die are water-cooled; shaft and screw come apart for cleaning.
Interchangeable units and options
Options: chiller for cooling the extrusion head; bronze dies or dies with PTFE inserts. The line can be completed with dryers.
