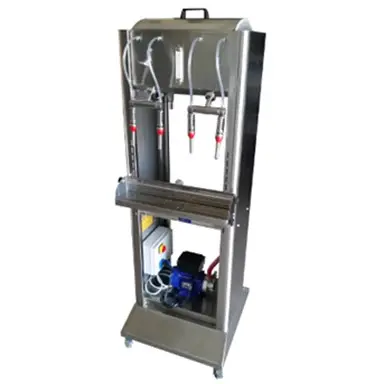

R4 Gravity Bottle Filler

The gravity-fed filler is made entirely from AISI 304 stainless steel and is suitable for filling food-grade liquids such as wine, juice, olive oil, beer and other liquids. Filling is carried out into glass bottles, and with the use of a special attachment, PET bottles can also be filled. It is fitted with filling heads that are fully adjustable and removable for quick and thorough cleaning. The machine is available in a benchtop version, on four adjustable legs, or as a trolley with four wheels. The level sensor is available in a mechanical version, made entirely of stainless steel, as well as in an electronic version, with a control panel for operating an external pump. All models are supplied with stainless steel valves, height-adjustable bottle holders and a level indicator.

Filling head 15 mm, DIN 15 connection.
Drain valve made from AISI 316.
Conical gaskets are used for filling. Maximum bottle neck diameter: 27 mm. Up to 40 mm on request. For diameters over 40 mm, flat gaskets are used.
Special filling heads for bottles with a neck diameter of up to 60 mm and a neck height of 120 mm are available on request.
Adjustable and tiltable bottle stand.
Adjustable legs.
Mechanical level sensor.

Options:

Pump.
Electronic level sensor with connection to the pump.
Filling device for PET containers.
System flushing device.
Filter with cardboard inserts.

Technical specifications

Capacity (depending on the product)	up to 670 l/h
Buffer capacity	45 litres
Mains specifications	220 V
Installed power	0.37 kW
Dimensions (L x W x H)	580 × 1800 × 500 mm
Weight approx.	45 kg
