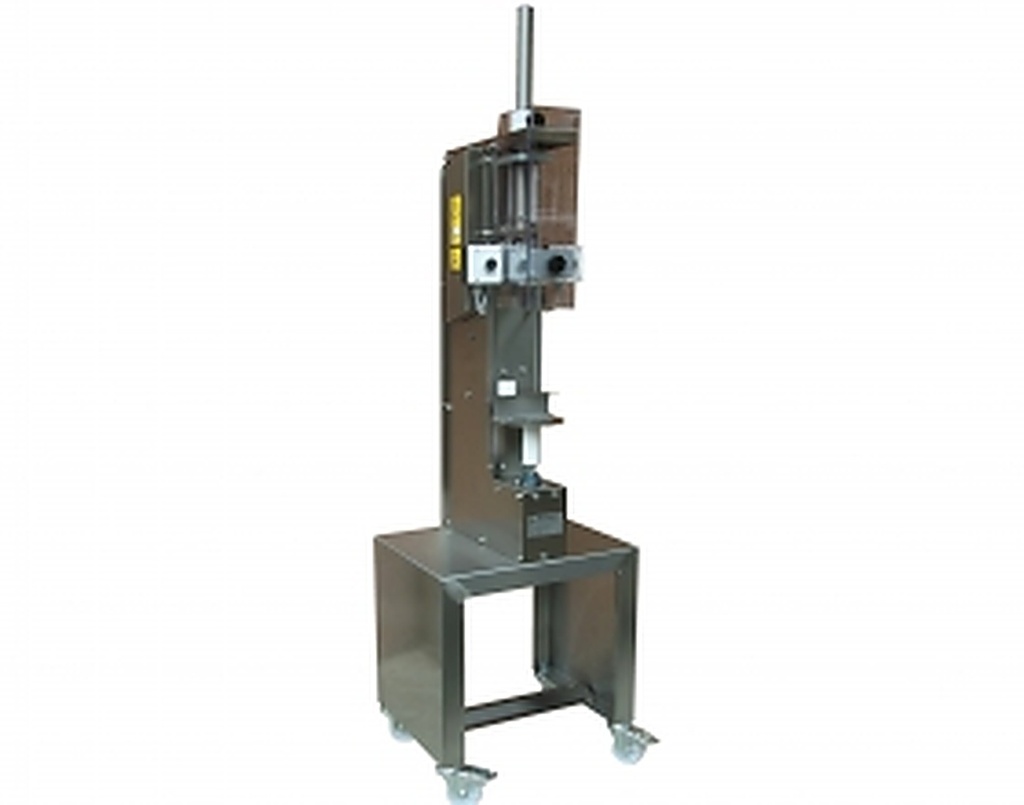

Corking unit Spagni AIRSUG • 20590

AIRSUG — a Spagni bench-top pneumatic semi-automatic machine for corking bottles with uniform corks. It is a compact corking machine for small and medium-sized wineries and bottling plants, powered by compressed air.

How it works

Four stainless steel jaws compress the cork, whilst pneumatic actuators insert it into the bottle neck; the cycle takes approximately 3 seconds. The basic version is a tabletop model without a trolley: the cork hopper and trolley are ordered separately as optional extras. Unlike the electromechanical MAMMUT, the AIRSUG requires a compressor; it differs from the AIR RASO in that it is a tabletop model with the option to add a hopper and trolley.

Key specifications

• Type: pneumatic semi-automatic machine for smooth corks
• Capping time: 3 seconds per cork
• Maximum stopper height: 50 mm
• Maximum bottle height: 350 mm
• Frame: stainless steel
• Compressor connection: yes (compressor not included)
• Options: stopper hopper, trolley

Applications

Corking bottles of wine, olive oil and vinegar with natural cork, agglomerated cork or synthetic corks. Suitable for tabletop installation where a compressed air supply is available.

Frequently asked questions

Is a compressor required? Yes, the machine runs on compressed air; a compressor is not included in the set.

Is there a cork hopper? The hopper can be ordered separately as an option; a trolley is also available.

How does the AIRSUG differ from the AIR RASO? Both are pneumatic machines designed for straight corks. The AIR RASO is compact (410 × 300 × 690 mm, 15 kg); the cork is loaded into a cassette, with a throughput of around 300 pieces per hour; AIRSUG caps each bottle in 3 seconds and can be fitted with a hopper and a trolley.
