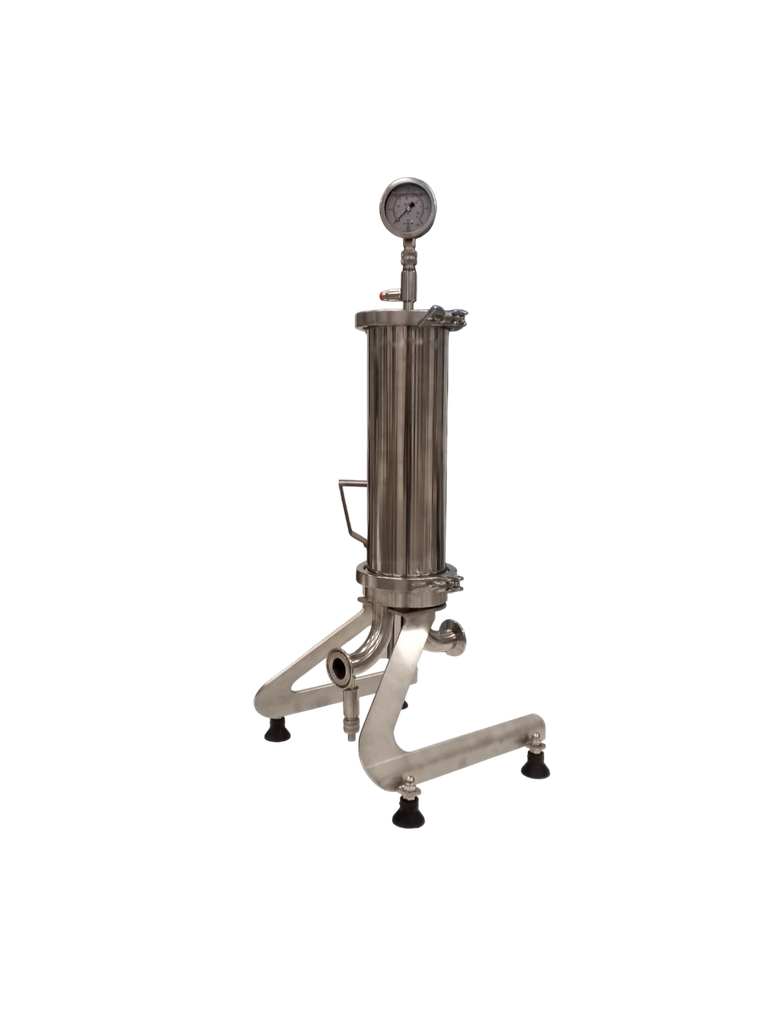

Spagni PDXV column filter
The Spagni PDXV column filter features a stainless steel housing with one to three columns for 10″ or 30″ cartridges, fitted with disc valves at the inlet and outlet.
Principle of operation
The liquid passes through the cartridges, whilst the DIN25 F valves provide convenient control. The unit is fitted with a pressure gauge, an air release valve, a needle valve for sampling and a gas connection for integrity testing. Cartridges of varying stages can be connected in series. Options: a single-column bypass and a sight glass. Unlike the PDX, this unit comprises several flasks and valves.
Key specifications
- Configurations: 1, 2 or 3 flasks
- Cartridge height: 10″ or 30″
- Housing: AISI 304, polished flask
- Connections: DIN25 F disc valves
- Maximum pressure: 4 bar
- Filtration fineness: up to 0.25 µm depending on the cartridge
Applications
For microfiltration of wine, beer and oil. Multiple flasks allow for the combination of filtration stages.
Frequently asked questions
How many flasks? One, two or three.
What options are available? A bypass and a sight glass.
What is the maximum pressure? 4 bar.
