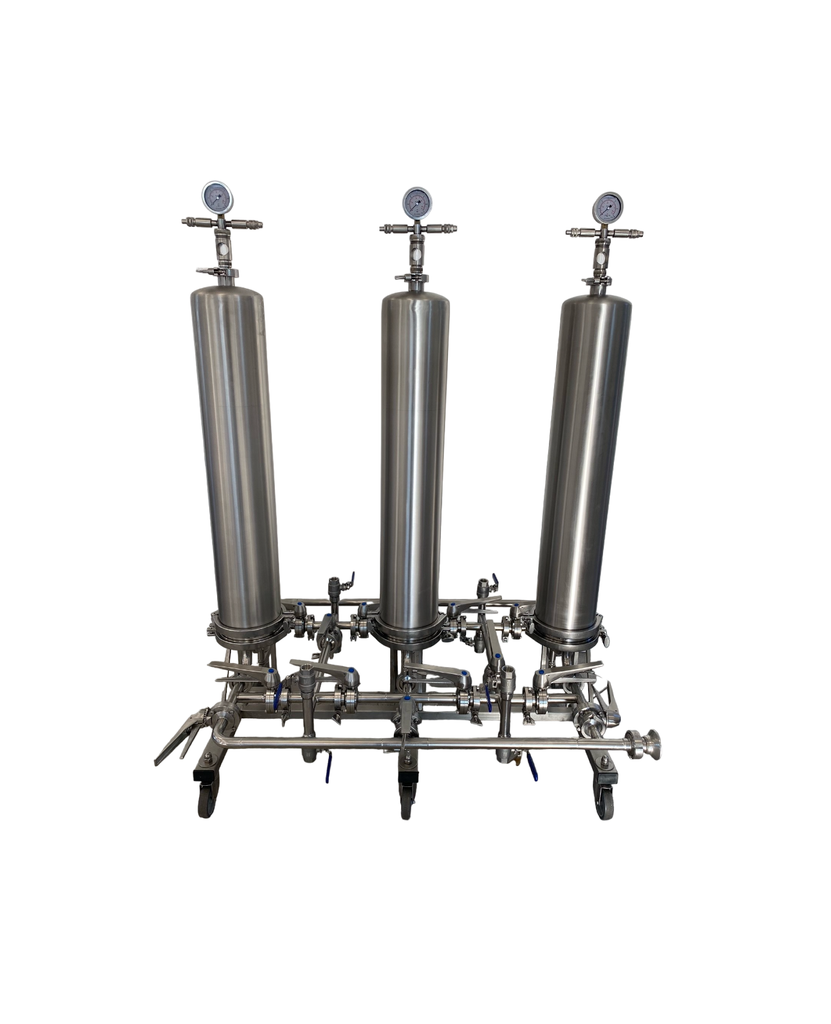

Spagni PDXV3 column filter
The Spagni PDXV3 column filter — a housing for three 30″ cartridges in each column, mounted on a stainless steel trolley.
Principle of operation
Disc valves, pressure gauges, sight glasses and a bypass are incorporated into the design. The twin-flask model allows one flask to be used for filtration whilst the other is being backflushed. The unit is fully dismantlable, with a 6″ Tri-Clamp base. Unlike the PDXV, each flask accommodates three 30″ cartridges, and the trolley has four wheels, two of which are braked.
Key specifications
- Cartridges: 3 × 30″ per flask
- Flasks: 1, 2 or 3
- Material: AISI 304, 316 on request
- Trolley: 4 wheels
- Base connection: 6″ Tri-Clamp
- Fully dismantlable
Applications
For large-scale microfiltration of wine, beer and oil.
Frequently asked questions
How many cartridges? 3 per flask.
Stainless steel? AISI 304, 316 to order.
Does it have wheels? Yes, the trolley has four.
