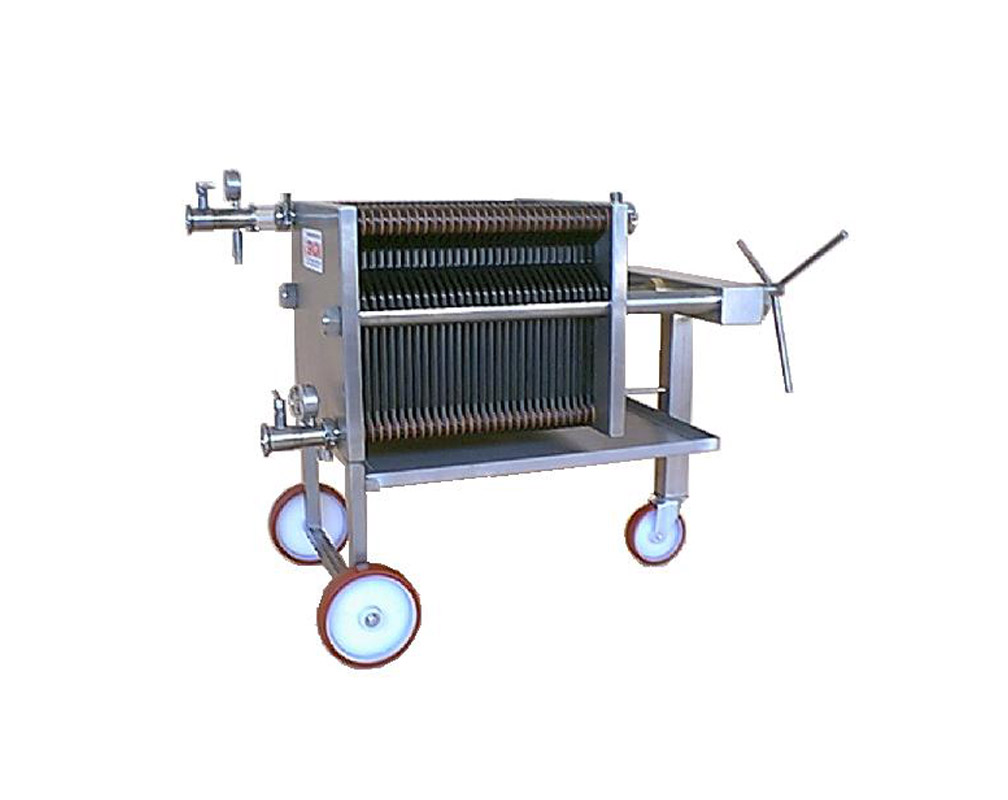

Spagni FP400 IE 40x40 cardboard filter
The Spagni FP400 IE cardboard filter is a professional model designed for 40 × 40 cm cardboard sheets, featuring a 220 V stainless steel centrifugal electric pump.
How it works
The single-phase pump supplies the liquid; the filter is fitted with two pressure gauges, a sight glass and a sampling tap. Maximum pump capacity: 2,400 l/h for 11 cardboard sheets, 4,200 l/h for 19, 29 and 39, and 9,000 l/h for 49 and DT. The actual throughput is limited by the grade of the cartons. It differs from the FP400 I in terms of the pump.
Key specifications
- Cardboard sheet size: 40 × 40 cm
- Number of cardboard sheets: 11–49 (DT: 59–79)
- Area: 1.7–12.6 m²
- Pump: 220 V, 50 Hz, single-phase
- 1½″ Tri-Clamp fittings for steam treatment
- Option: three-phase motor
Applications
For professional wine and oil production.
Frequently asked questions
What is the pump’s capacity? 2,400, 4,200 or 9,000 litres per hour, depending on the number of cartons.
Three-phase motor? This is an option.
Is there a version for oil? Yes.
