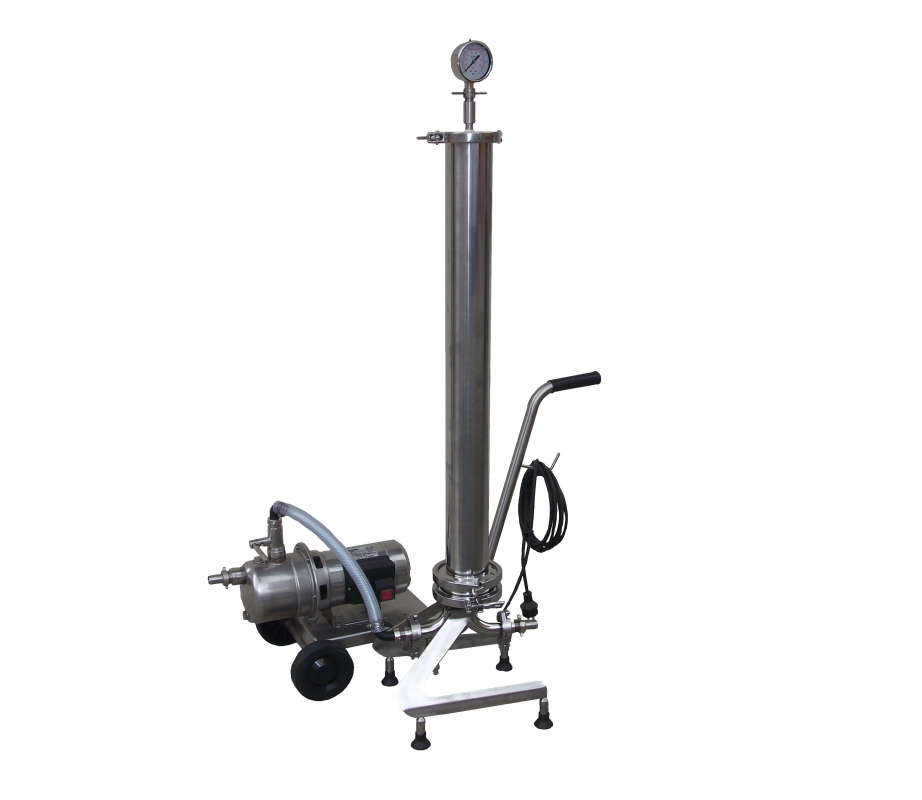

Spagni PDEX column filter
The Spagni PDEX column filter is a single-cartridge model fitted with a JESM5 electric pump, designed for the precise filtration of wine, beer and oil.
How it works
A 230 V, 0.37 kW pump feeds the liquid through a single cartridge. The set includes a 0.45 µm polypropylene cartridge, an air release valve and a pressure gauge. This is the only model in the range that comes with a pump.
Key specifications
- Cartridge height: 10″ or 30″
- Housing: AISI 304
- Pump: 0.37 kW, 230 V, 50 Hz
- Filter cartridge included: 0.45 µm
- Maximum pressure: 4 bar
Applications
For small-scale production facilities requiring a complete microfiltration system.
Frequently asked questions
Is a pump included? Yes.
Filter cartridge? 0.45 µm included.
Pressure? Up to 4 bar.
