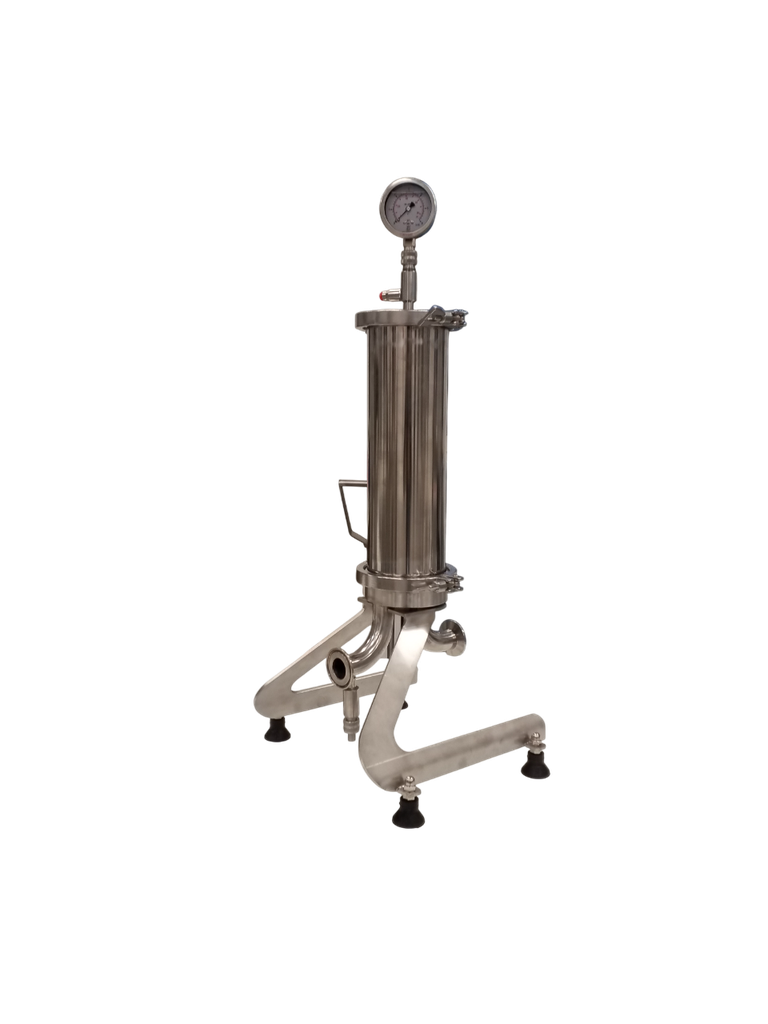

Spagni PDXPD column filter
The Spagni PDXPD column filter comprises two flasks mounted on demountable stainless steel tubular frames with four disc valves.
Principle of operation
Combinations: 10″+10″, 30″+10″, 30″+30″. Each flask is fitted with a tap and a pressure gauge, as well as a needle valve for draining the unfiltered product. 1½″ Tri-Clamp inlet and outlet. The frames can be separated. Unlike the PDXV, there are always two flasks.
Key specifications
- Flasks: 2
- Combinations: 10″+10″, 30″+10″, 30″+30″
- Connections: 1½″, 4 disc valves
- Maximum pressure: 4 bar
- Housing: stainless steel, polished flask
Applications
For two-stage microfiltration of wine, beer and oil.
Frequently asked questions
How many flasks? Two.
Can they be separated? Yes.
What are the heights? 10″ and 30″ in three combinations.
