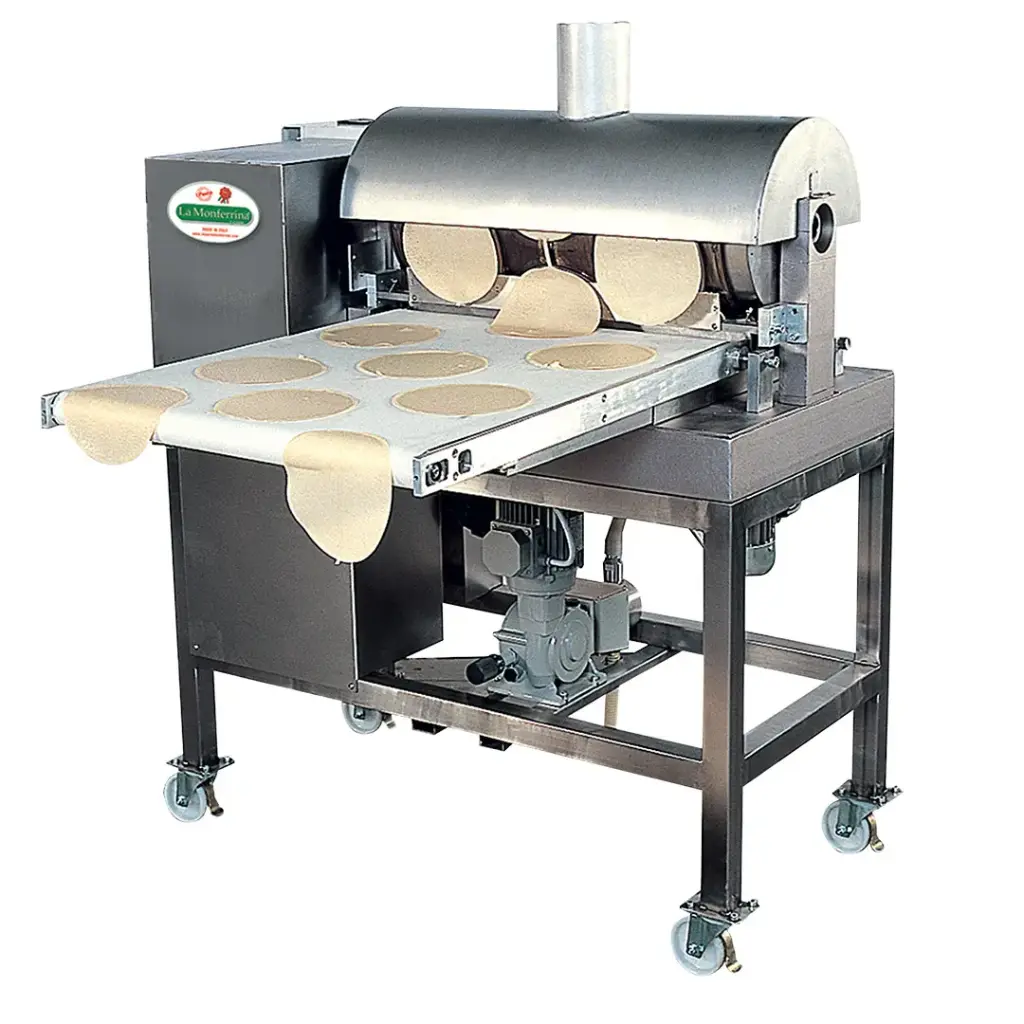

Pancake maker La-Monferrina C3 for round crepes (380V)
Art.: HFP-02014 La-MonferrinaThe C3 model machine is designed to produce ready-to-use round pancakes (diameter upon request). The machine produces sweet, savory, or spiced pancakes (with spices added to the batter).
The temperature of the rotating frying drum is adjustable (max. 350°C).
The machine comes with a 50 l batter tank, from which the batter is pumped to the machine.
The drum speed (output) is adjusted by a frequency converter as required. The pancakes are fried without using sunflower oil.
Technical specifications
Output, depending on size, max. | 1,200... 2,300 pcs/h |
Product size | 100... 550 mm |
Power supply | 380 V |
Installed power | 28.0 kW |
Dimensions (L x W x H) | 1300 x 1180 x 1371 mm |
Approx. weight, kg | 378 kg |
How it works
Batter from a 50-litre tank is fed by a dosing pump onto a heated rotating drum. The drum speed (and with it the output) is controlled by a frequency inverter, and the drum temperature can be set up to 350 °C; steam is removed by an exhaust hood above the drum. Round crêpes of any diameter, 100–550 mm as required by the customer, are baked on the drum.
Design
- 50-litre batter tank, fed by a dosing pump
- Drum speed controlled by an inverter; drum temperature up to 350 °C
- Exhaust hood above the drum for removing steam
- Stainless steel and aluminium EN AW 6082 T6; electrical panel mounted on the machine; trolley with wheels
- Round crêpes 100–550 mm in diameter; output 1,200–2,300 pcs/h for Ø200 mm crêpes (depends on diameter)
- Power 28 kW, weight 378 kg
Applications
Workshops and laboratories with high output: semi-prepared food producers, catering kitchens and fresh-pasta laboratories — crêpes on a continuous basis.
