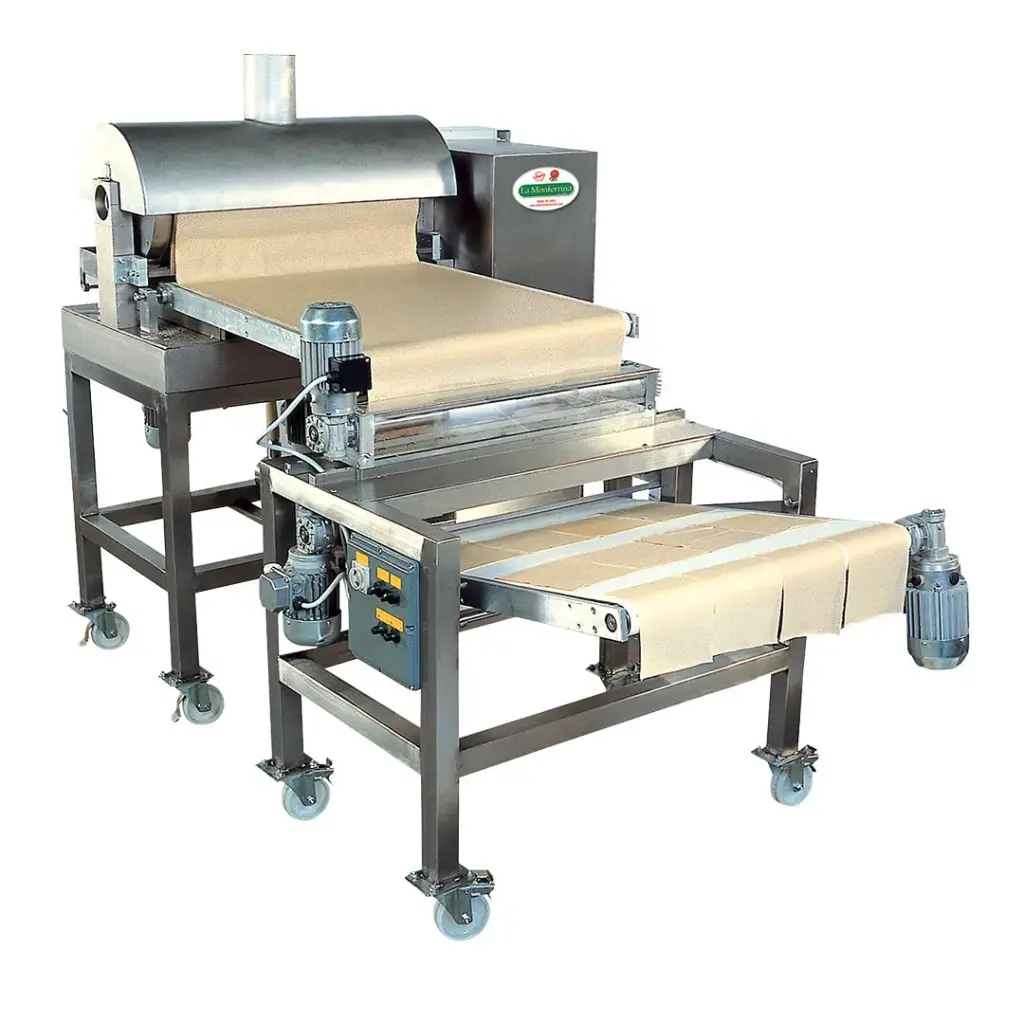

Pancake maker La-Monferrina C4 for rectangular crepes (380V)
Art.: HFP-02017 La-MonferrinaThe C4 model machine is designed to produce ready-to-eat rectangular pancakes. First, the machine fries a strip of dough 640 mm wide, which is then automatically cut into rectangular shapes of the required size.
The machine is supplied with a 50-litre dough container, from which the dough is pumped onto the machine.
The machine is fitted with a ‘cutting unit’, which ensures longitudinal and transverse cutting of the 640 mm wide strip. Control of the cutting length of the pancake strip is carried out by an electronic sensor.
The machine’s output is adjustable, depending on demand. The pancakes are fried without the use of sunflower oil.
Technical specifications
Capacity, max. | 120... 150 m/h |
Product size | 640 mm (belt) |
Mains specifications | 380 V |
Installed power | 28.0 kW |
Dimensions (L x W x H) | 2100 × 1180 × 1371 mm |
Approx. weight, kg | 471 kg |
How it works
Batter from a 50-litre tank is fed by a dosing pump onto a heated rotating drum. The drum speed (and with it the output) is controlled by a frequency inverter, and the drum temperature can be set up to 350 °C; steam is removed by an exhaust hood above the drum. A belt 640 mm wide forms on the drum and passes to the cutting unit: longitudinal cutting is adjusted manually and transverse cutting electrically, giving square and rectangular crêpes of various sizes.
Design
- 50-litre batter tank, fed by a dosing pump
- Drum speed controlled by an inverter; drum temperature up to 350 °C
- Cutting unit: longitudinal cutting adjusted manually, transverse cutting adjusted electrically
- Exhaust hood above the drum for removing steam
- Stainless steel and aluminium EN AW 6082 T6; electrical panel mounted on the machine; trolley with wheels
- Output 120–150 m/h, belt width 640 mm, power 28 kW, weight 471 kg
Applications
Workshops and laboratories with high output: semi-prepared food producers and catering kitchens — the belt is suited to further cutting and filling.
