Fillers and dosing units

Optional Enoitalia accessory: Kit for filling low-profile pouches.

Optional Enoitalia accessory: Kit for manual filling of bag-in-box containers, including a tool for opening and closing the tap.

Optional Enoitalia accessory: Kit for filling 0.5-litre and 1-litre bottles.

Optional Enoitalia accessory: A kit for filling flexible PVC containers.

Optional Enoitalia accessory: Bag-in-box filling kit with a manual sealing system.

Optional Enoitalia accessory: A pair of filling heads for a height of 110 mm.

Optional Enoitalia accessory: Stainless steel filling gun.

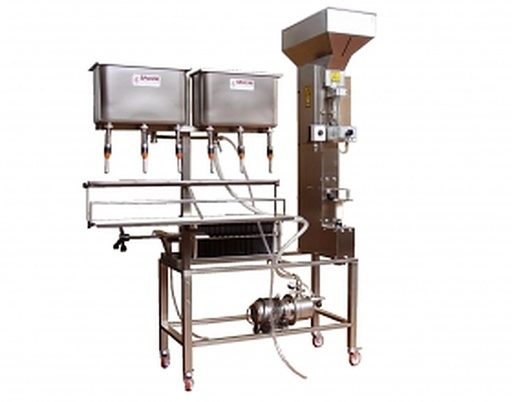

A custom-configured monoblock unit featuring a linear gravity filler, an electric pump and an AIRSUG pneumatic corking machine for flush corks. Cork stoppers are fed manually from a column in batches of approximately 10, and bottles are loaded manually. Available in RI 3M, 4M and 6M configurations, with an optional hopper for loose cork stoppers.

RP linear filler with a positive displacement pump for all types of liquids, including viscous ones. Automatic bypass and return of liquid to the tank. The kit includes a set of spacers for adjusting the fill level and spare gaskets. Swivel supports are available for PET.

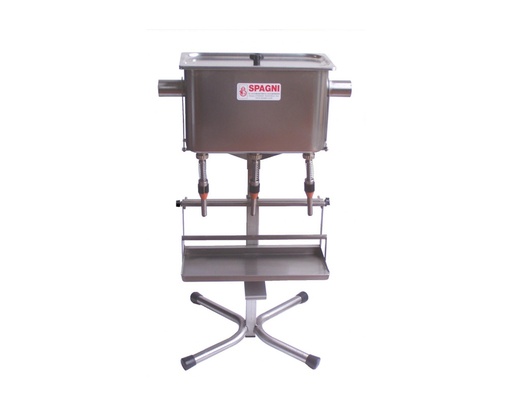

RI MK (low) linear gravity-fed filler from the ‘Fresh Milk’ series. Gravity-fed from a height of over 80 cm, stainless steel tank, detachable spouts for cleaning. Suitable for glass and PET bottles; the set includes level spacers and spare gaskets.

RI MAK high-capacity linear gravity-fed milk filler (the ‘fresh milk’ series). Requires milk to be fed from a height of over 150 cm. Models available with 2, 3, 4 and 8 spouts; stainless steel tank, PET supports — optional.

RI M (low) gravity-fed linear filler made from AISI 304 stainless steel with a safety float. Operates without a pump and is suitable for small wineries. Nozzles Ø14 mm; fill level adjustment via spacers. Stainless steel fittings are optional.

RI MA high-capacity linear gravity-fed feeder for liquids with a density similar to that of water. Gravity feed from a height of over 150 cm or via a pump from the filter. A bypass is included; stainless steel fittings are optional.

RI MEA linear filler: the tank is filled by a built-in 230 V electric pump; dispensing is by gravity. A bypass is included in the set. For liquids with a density similar to water; an electronic level sensor and stainless steel fittings are available as optional extras.

RI EPET (RI EDAM PET) linear filler with a hopper filled by a built-in 230 V pump. Stainless steel fittings, Ø16 mm nozzles, swivel support for PET. Sealing cones are manufactured to the customer’s specifications.
