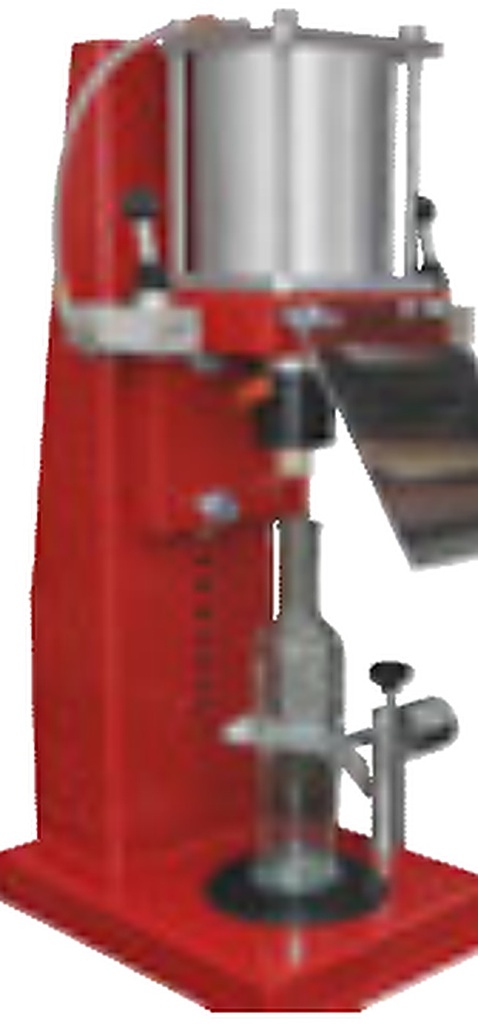

Spagni AIR PRESS UNI Capping Machine for Press Stoppers
AIR PRESS UNI — a Spagni bench-top pneumatic semi-automatic capping machine for pressure-fit stoppers. Manufactured to the customer’s specifications for stoppers and bottles.
Principle of operation
The clamping head lowers when the operator presses two buttons simultaneously, pressing the stopper into the neck of the bottle; the height of the head is adjustable. The drive is pneumatic, with a low-pressure reducer. It differs from the electric ELE PRESS UNI model in terms of its drive type: it requires a compressor rather than a 220 V mains supply. The head is manufactured to fit a specific stopper, so samples of the stoppers and bottles must be sent with the order.
Key specifications
- Type: bench-top pneumatic semi-automatic
- Control: dual, two-button
- Drive: compressed air via a low-pressure reducer
- Height adjustment: yes
- Variants: for T-shaped and mushroom-shaped stoppers, cans, anti-siphon stoppers, tin stoppers, 3–5 litre PET bottles
Applications
Capping with pressure-sealed stoppers in wineries, vinegar and oil production facilities, breweries, juice production plants and laboratories.
Frequently asked questions
What do I need to send before placing an order? Samples of the stoppers and bottles, as the press head is custom-made to fit them.
What should I order for anti-overfill or 3–5 litre PET bottles? The appropriate version of the AIR PRESS UNI; please send samples before ordering.
How does it differ from the ELE PRESS UNI? The AIR PRESS UNI is powered by compressed air, whilst the ELE PRESS UNI is electric (220 V).
