Spagni PVCMANO Capsule Filler

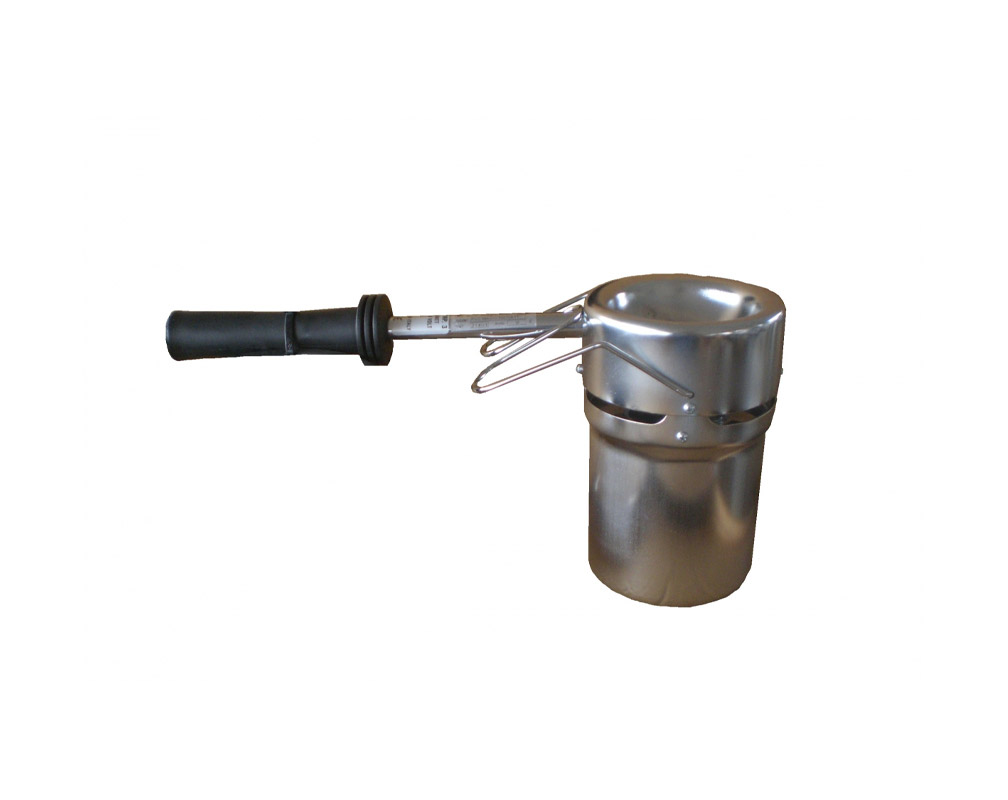

PVCMANO — a Spagni hand-held heater for heat-shrinkable PVC capsules. A MEGA version is available for large containers.
How it works
The electrically heated hand-held cap is lowered onto a bottle fitted with a PVC capsule, causing the capsule to shrink around the neck. Power: 600 W, 220 V. The standard version is designed for 35 mm capsules, whilst the MEGA version is designed for 60–80 mm capsules. It differs from the PVCHOTAIR in that it uses a heated cap rather than a stream of hot air.
Key specifications
- Type: handheld heater with a hood
- Power: 600 W, 220 V
- Standard: 35 mm capsule, passage diameter 70 mm, height 80 mm
- MEGA: 60–80 mm capsule, passage diameter 100 mm, height 100 mm
Applications
Shrinking PVC capsules onto bottles in small-scale production; MEGA — for large bottles.
Frequently asked questions
Is there a version for magnums? Yes, the PVCMANO MEGA with a capsule diameter of 60–80 mm.
Is it suitable for aluminium capsules? No, it is only suitable for heat-shrinkable PVC capsules.
