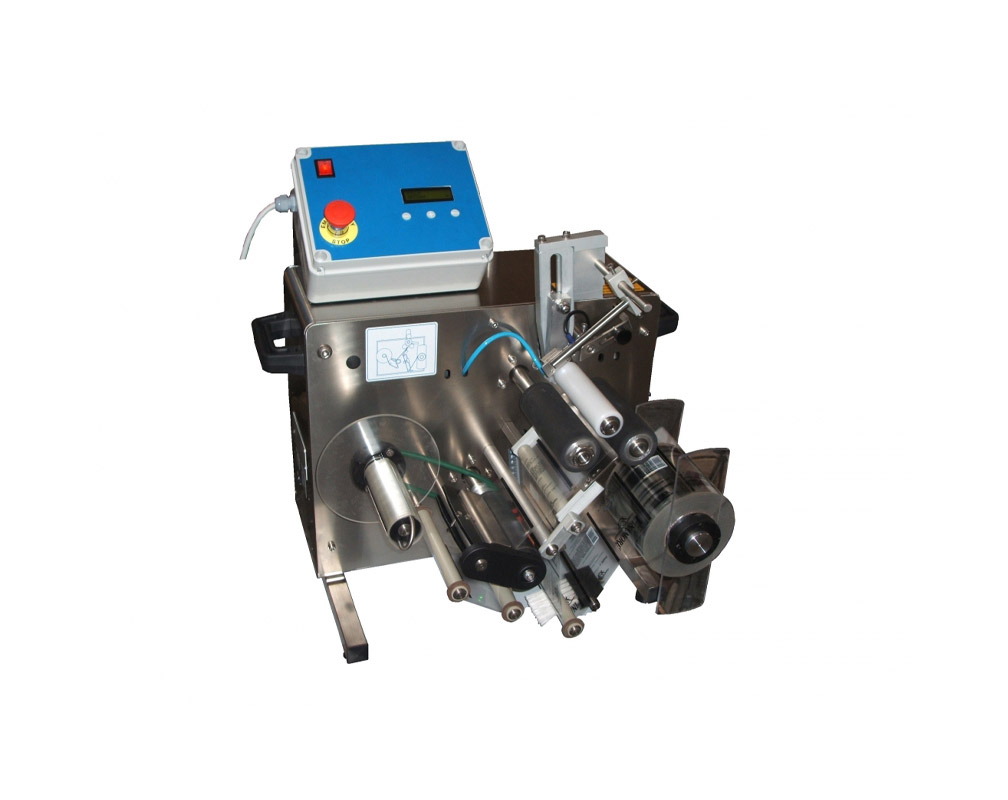

Labeling machine Spagni EDIAD
The Spagni EDIAD labelling machine is a semi-automatic benchtop machine for self-adhesive labels of various formats. It is suitable for use with cylindrical and square bottles, jars and other containers, including those made of plastic.
How it works

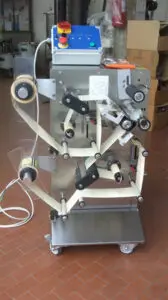

The label and back label are applied from a single roll in a single pass. Bottles are fed manually, whilst the label format and length are adjusted via the built-in touchscreen panel; batch marking is available on request. The design features a microprocessor board, a stainless steel housing and a toothed roller for feeding the backing material with a quick-release mechanism. Versions: T for round bottles, TQ for round and square bottles, and 2T with two stations. This model differs from the related BIFIX model specifically in its range of versions, notably the two-station 2T model.
Key specifications
- Dimensions: 550 × 400 × 500 mm
- Weight: 40 kg
- Power supply: 230 V, 50 Hz; power 0.2 kW
- Noise level: 40 dB
- Round bottle diameter: 45–120 mm (optional: 17–160 mm)
- Label length: up to 280 mm (optional: 340 mm)
- Label height: up to 140 mm (optional: 190 mm)
- Outer roll diameter: up to 270 mm
Applications
The EDIAD is suitable for wineries, oil mills and cosmetics manufacturers where a variety of containers in several formats need to be labelled. Options include photocells, high rollers and batch marking units (ink, thermal, inkjet).
Frequently asked questions
Which version is suitable for square bottles? EDIAD TQ.
Can batch numbers be printed? Yes, as an option – a separate kit is required, and for thermal or pneumatic ink printing, a compressor is also needed.
What type of labels are required? Self-adhesive labels on a roll only.
