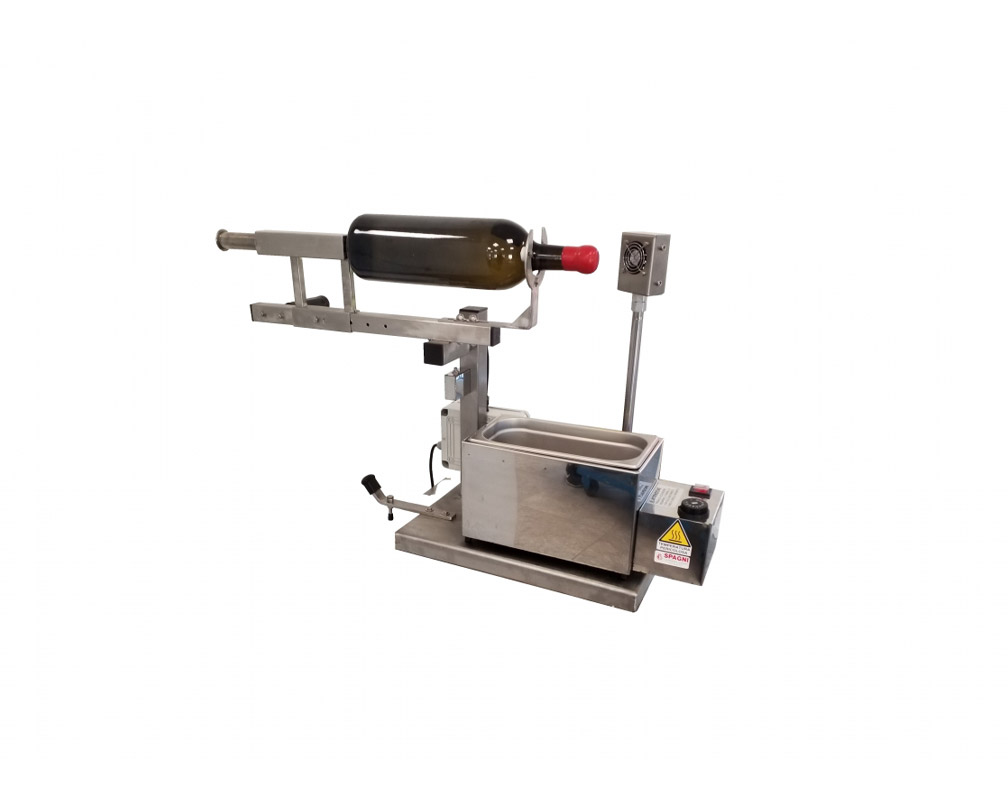

Spagni FOR WAX wax-sealing machine
FOR WAX — Spagni bench-top machines for applying a wax or rubber-lacquer capsule to the neck of a bottle by immersion in a molten mass. Available in 1, 3 and 6-bottle models.
Principle of operation
A group of bottles is manually tilted so that their necks are immersed in the molten wax; rotation starts automatically when the lever is raised. The bottle rotates in the molten wax, ensuring that the wax forms an even layer over the stopper and neck. The temperature of the molten wax is constant and controlled by a thermostat. In the horizontal position, there is a drain to allow excess wax to run off. Fans or pneumatic cooling accelerate the drying of the capsules. The FOR WAX 1 has a 5-litre tank, whilst the FOR WAX 3 and 6 have 15-litre tanks; the FOR WAX 3 can accommodate three tanks, allowing three colours to be used simultaneously.
Key specifications
- Type: tabletop dip-waxing machine, 1, 3 or 6 bottles
- Output according to the website: up to 150 (for 1), 500 (for 3) and 800 (for 6) pairs per hour
- Bottle diameter: up to 130 mm as standard (larger diameters available with the large-diameter kit)
- Furnace capacity: 5 litres (for 1 bottle), 15 litres (for 3 and 6)
- Power supply: 220 V
- Frame and casing: stainless steel
- Options: fans, pneumatic cooling, trolley
Applications
Applying decorative and protective wax or rubber lacquer capsules to bottles of wine, vinegar, oil and liqueurs.
Frequently asked questions
What is the maximum bottle diameter? 130 mm as standard; a separate kit is available for larger bottles.
How many bottles per hour? According to the website: up to 150, 500 and 800, depending on the version for 1, 3 or 6 bottles.
Can different colours be used? The FOR WAX 3 can have three trays — three colours at the same time.
What additional items should I buy? Wax as a consumable; for faster drying — fans or pneumatic cooling; and a trolley if required.
