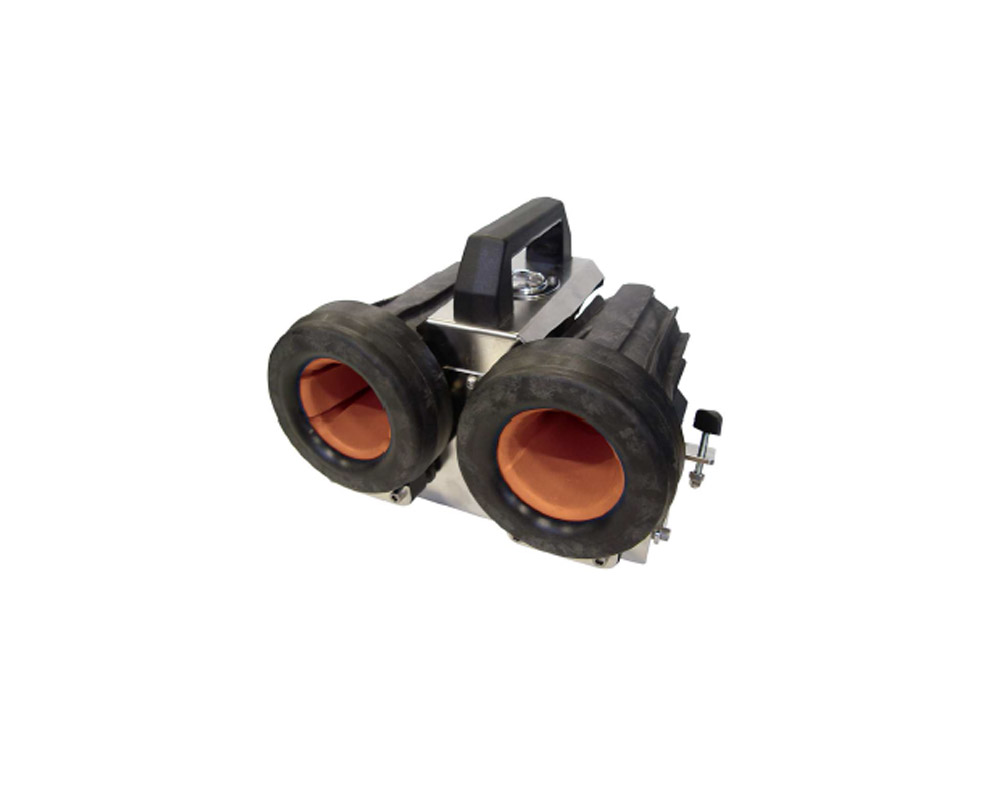

Spagni CHAMP Capsule Filler
CHAMP — a Spagni pneumatic capsuler for forming capsule rings on bottles of carbonated beverages. Available in the UNI, TO, SPEEDY, PNEU and L3 versions.
How it works
The capsule is placed over the neck of the bottle, which is then manually inserted into two mould halves: first, the folds are pre-formed, followed by final smoothing. The drive is powered by compressed air at 3.5 bar. Interchangeable sleeves produce either 2 or 4 folds. SPEEDY — a tabletop frame with a lever and a bottle support; PNEU — with pneumatic lowering; TO — for the narrow 0.75-litre Tosca bottle; L3 — for 3-litre bottles (Jeroboam).
Key specifications
- Type: pneumatic capsule sealer
- Air pressure: 3.5 bar
- Bottles: 0.75; 1 and 1.5 litres (L3 — 3 litres)
- Capsule height: 100–150 mm (L3 — 170 mm)
- Production capacity according to the website: up to 500 bottles/hour
- Capsule size (consumable): 34 × 125 mm
Applications
Applying capsules to standard-neck bottles for carbonated beverages, as well as to 0.75-litre and 3-litre Tosca bottles, depending on the version.
Frequently asked questions
What capsule heights does the CHAMP accommodate? 100–150 mm; L3 — 170 mm for 3-litre bottles.
Is a compressor required? Yes, 3.5 bar; compressor sold separately.
How do the versions differ? UNI — standard neck for 0.75–1.5 l bottles, TO — Tosca 0.75 l only, L3 — 3 l, SPEEDY — tabletop model with lever, PNEU — with pneumatic lowering.
