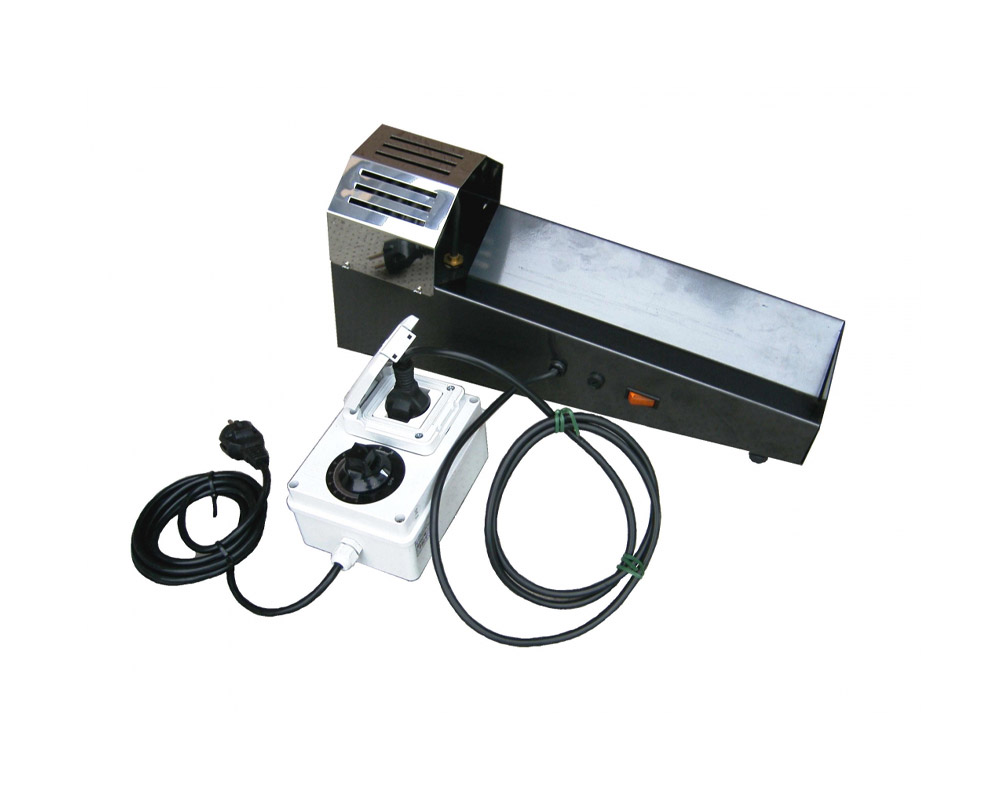

Spagni PVCFOR Capsule Filler
PVCFOR — a Spagni tabletop electric heater for heat-shrinkable PVC capsules with a diameter of up to 35 mm. Suitable for small and medium-sized production runs.
How it works
A bottle fitted with a PVC capsule is passed through the heating zone of a 220 V electric heating coil, causing the capsule to shrink around the neck. The AR version features an adjustable bottle guide (60–120 mm), whilst the ARR version also includes temperature control. The FE model has an enamelled metal housing, whilst the IN model has a stainless steel housing. It differs from the manual PVCMANO and PVCHOTAIR models in that it is a stationary unit.
Key specifications
- Type: tabletop heater, 220 V heating element
- Capsule diameter: 35 mm, neck diameter: 62 mm, capsule height: 65 mm
- Power: 700 W (FE), 850 W (AR, ARR)
- Bottle guide (AR/ARR): 60–120 mm
- Housing: enamelled metal or stainless steel
Applications
Capping of PVC capsules on bottles of wine, oil and spirits in small and medium-sized production facilities.
Frequently asked questions
Which capsules are suitable? PVC heat-shrink capsules, up to 35 mm in diameter.
What is the difference between the AR and ARR models? The AR model features an adjustable bottle guide, whilst the ARR model also includes temperature control.
