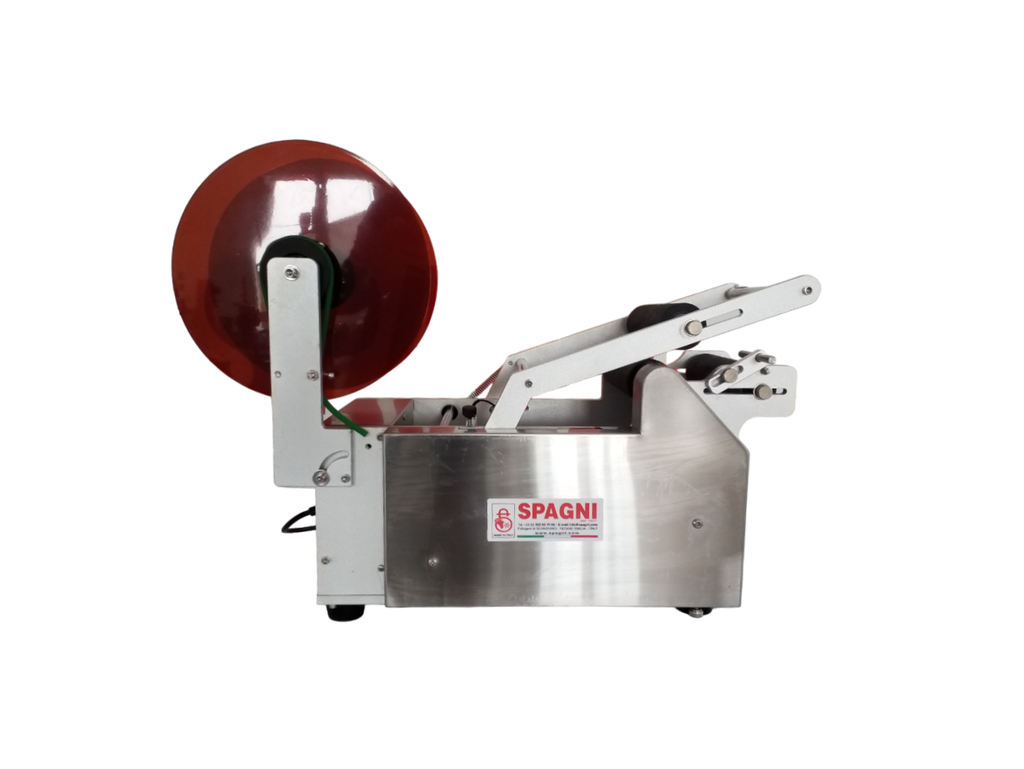

Labeling machine Spagni ADEMATIC • 21216d10

The Spagni ADEMATIC semi-automatic labelling machine applies self-adhesive labels and back labels to cylindrical and conical bottles. It is designed for wineries and small-scale producers who require neat labelling without the need for complex equipment.

How it works

Operation is manual, whilst an automatic stop is provided by a photocell. The operator moves the bottle manually, and the machine first applies the label, then the back label. This model differs from the manual ADEMANO NEO and ADEMAX models in that it features an electric drive powered by a Schuko socket and a photocell, whilst it differs from the tabletop BIFIX and EDIAD models in that the bottle must be moved manually between applications. For bottles with unusual shapes, the manufacturer asks that a sketch be sent so that the correct settings can be selected.

Key specifications

• Power supply: mains, Schuko socket
• Material: stainless steel and aluminium
• Bottle diameter: 10–130 mm
• Maximum label height: up to 210 mm
• Outer roll diameter: up to 300 mm
• Bottle types: cylindrical and conical
• Automatic stop via photocell

Applications

ADEMATIC is well suited to a wide range of bottle shapes — from simple Bordeaux-style bottles to more complex shapes and conical bottles. Recommended for wineries, craft producers and laboratories where labelling is carried out in batches.

Frequently asked questions

Does the machine apply a back label? Yes, it applies both the label and the back label with manual bottle handling.

Will non-standard bottles fit? A template is required for special bottles; please send it to the manager.

What is the throughput? The manufacturer does not specify this for this model; please check with the manager.
