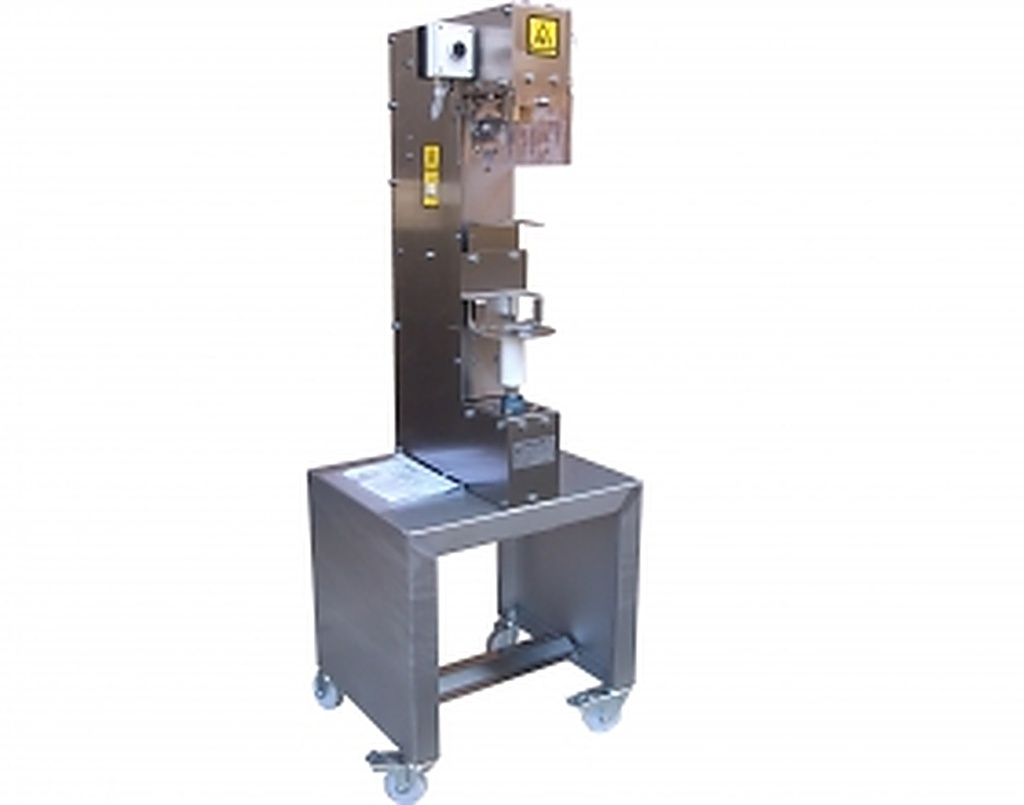

Wire hooding machine Spagni PM05 • 20919b01
PM05 — a semi-automatic Spagni machine for fitting muslets onto cork or plastic mushroom-shaped stoppers. Mounted on a trolley, with a stainless steel frame.
Principle of operation
The stopper clamp and trolley are pneumatically operated, whilst bottle loading is manual. It takes approximately 3 seconds to screw the cage onto the bottle. It differs from the tabletop PM06 and the manual PM08 and PM09 models in that it features a trolley and a pneumatic drive for the trolley. The Spagni PM05 price list recommends using it in conjunction with the BAMBY corking machine.
Key specifications
- Type: semi-automatic, carriage-mounted with pneumatic drive
- Time taken to screw on the cage: approximately 3 s
- Dimensions: 1440 × 520 mm
- Net weight: 48 kg
- Maximum bottle diameter: 112 mm
- Loading: manual
- Frame: stainless steel
Applications
Securing mushroom-shaped muselet stoppers on bottles of sparkling wine and beer; requires a compressor.
Frequently asked questions
Which machine should be used after the BAMBY? According to the Spagni price list — the PM05.
Which stoppers are suitable? Only mushroom stoppers made of cork or plastic.
Is a compressor required? Yes, the press and trolley are pneumatic.
