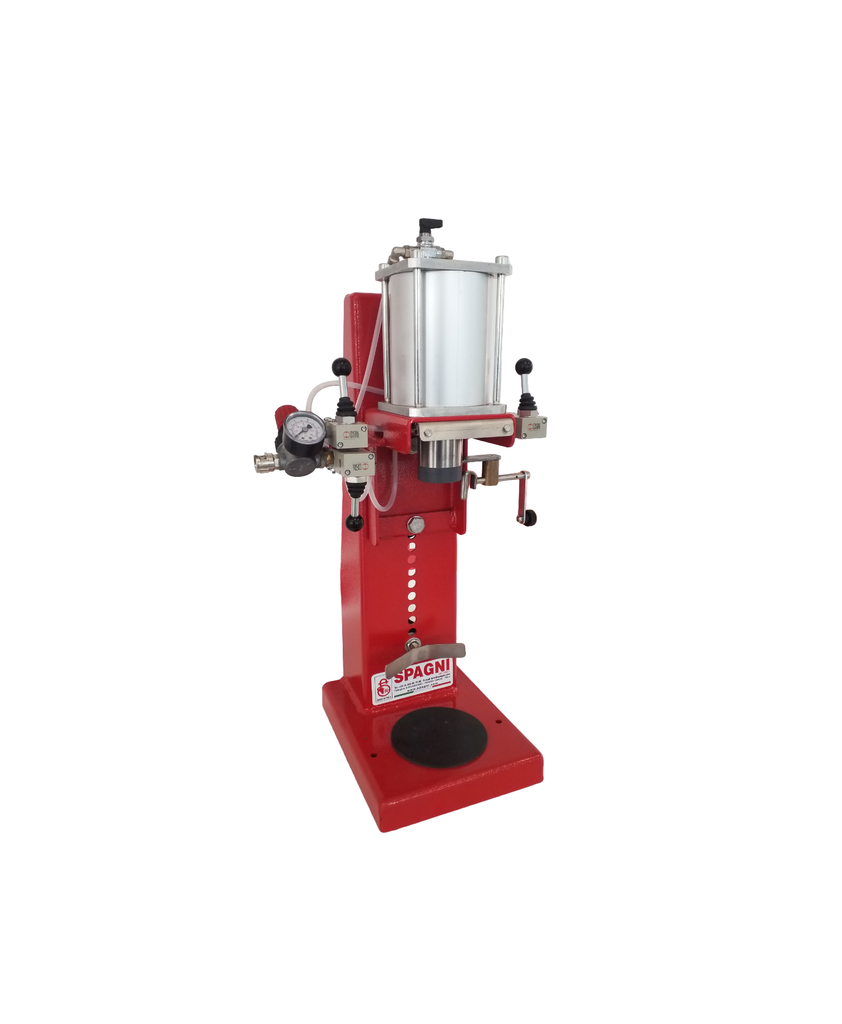

Wire hooding machine Spagni PM06

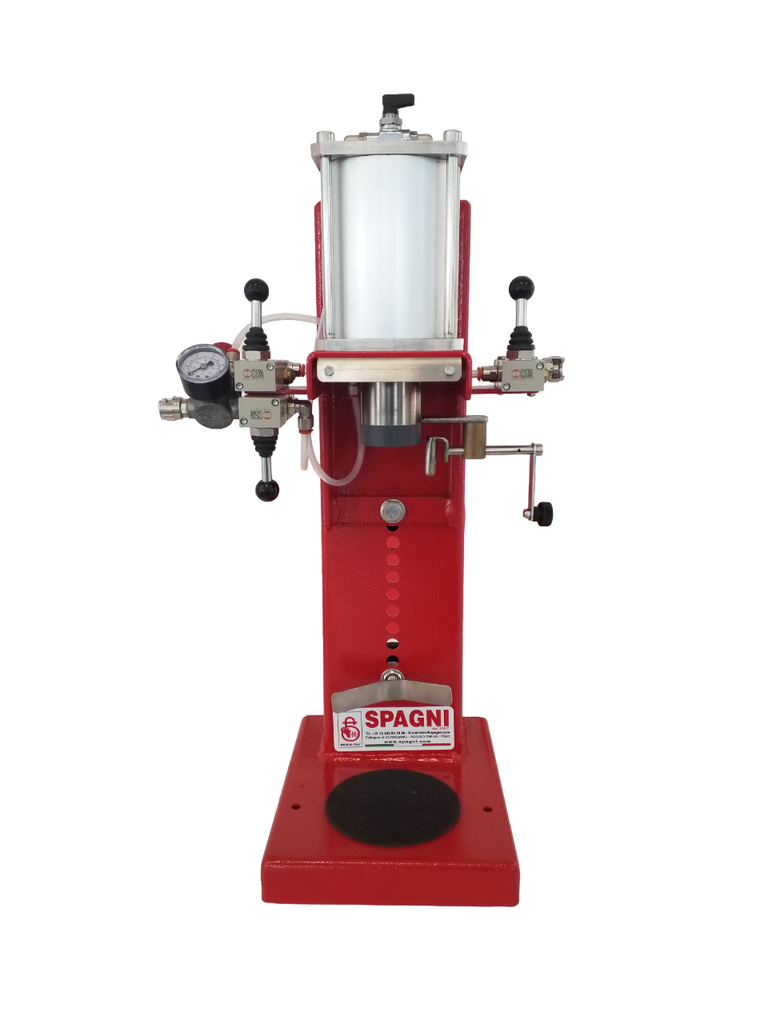

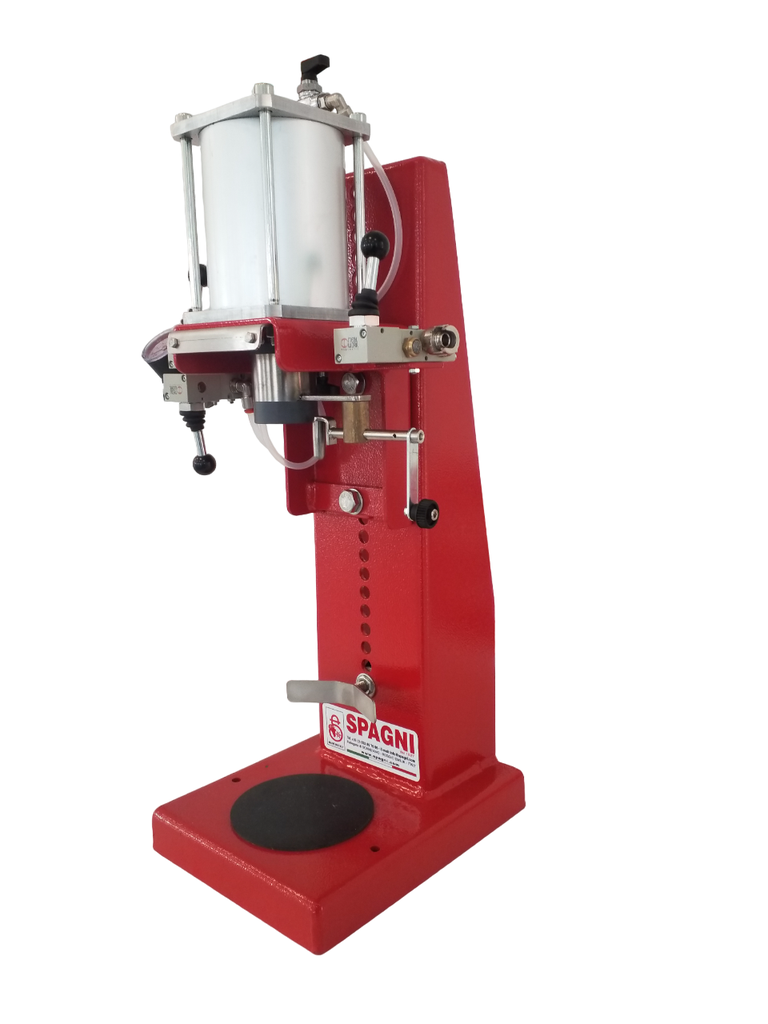

PM06 — a Spagni bench-top machine for fitting mushroom-head stoppers: the stopper is held in place pneumatically, whilst the cage is screwed on by hand.

Principle of operation

The pneumatic clamp holds the cork in place whilst the operator screws on the cage, and the height is adjusted to suit the bottle. The system is controlled by two monostable and one bistable valves; the compressor’s operating pressure is 8 bar. The PM06 UNI version features an automatic screw-on mechanism, whilst the PM06 SG version features only manual screw-on of the cage with an ‘on/off’ pneumatic clamp. The frame is made of enamelled iron; stainless steel is available on request.

Key specifications

• Type: bench-top, pneumatic clamping and manual tightening
• Compressor pressure: 8 bar
• Dimensions: 290 × 250 × h600 mm
• Height adjustment: yes
• Frame: enamelled iron (stainless steel — on request)
• Versions: PM06 UNI, PM06 SG

Applications

Installation of a muzzle on bottles of sparkling wine, beer and cider with mushroom-head corks in small and medium-sized production facilities.

Frequently asked questions

How does the PM06 differ from the PM05? The PM06 is a benchtop model with manual cage screwing; the PM05 is a trolley-mounted model with pneumatic screwing.

Is a compressor required? Yes, 8 bar.

How does the UNI differ from the SG? The UNI has an automatic caging mechanism, whilst the SG features manual caging and a pneumatic ‘on/off’ clamping mechanism.
