Spagni PVCPROF Capsule Filler
PVCPROF — a professional Spagni heater for heat-shrinkable PVC sleeves. Available in the following models: TESTA, SLITTA, VERTICALE, MEGA VERT and PNEU.
How it works

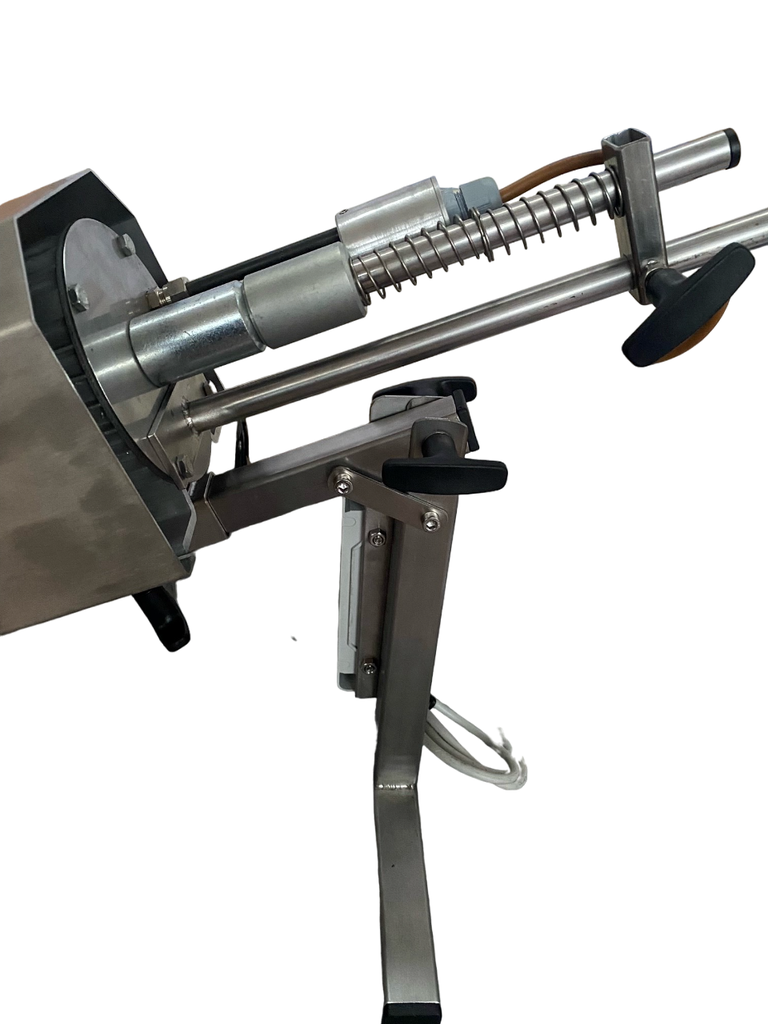

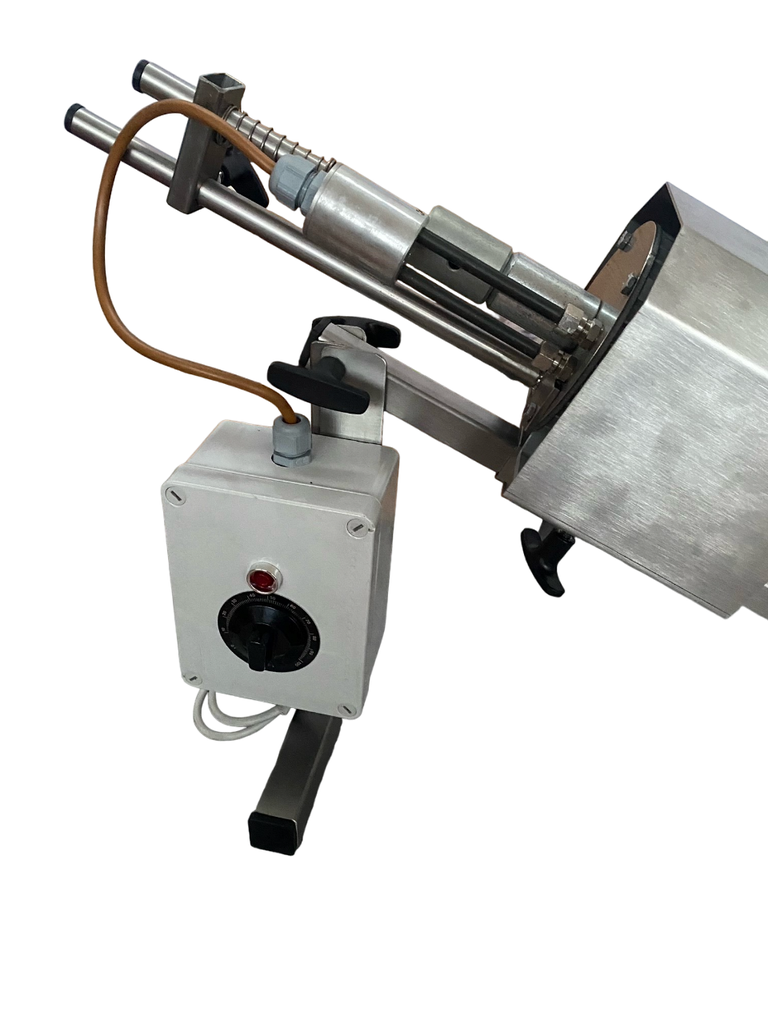

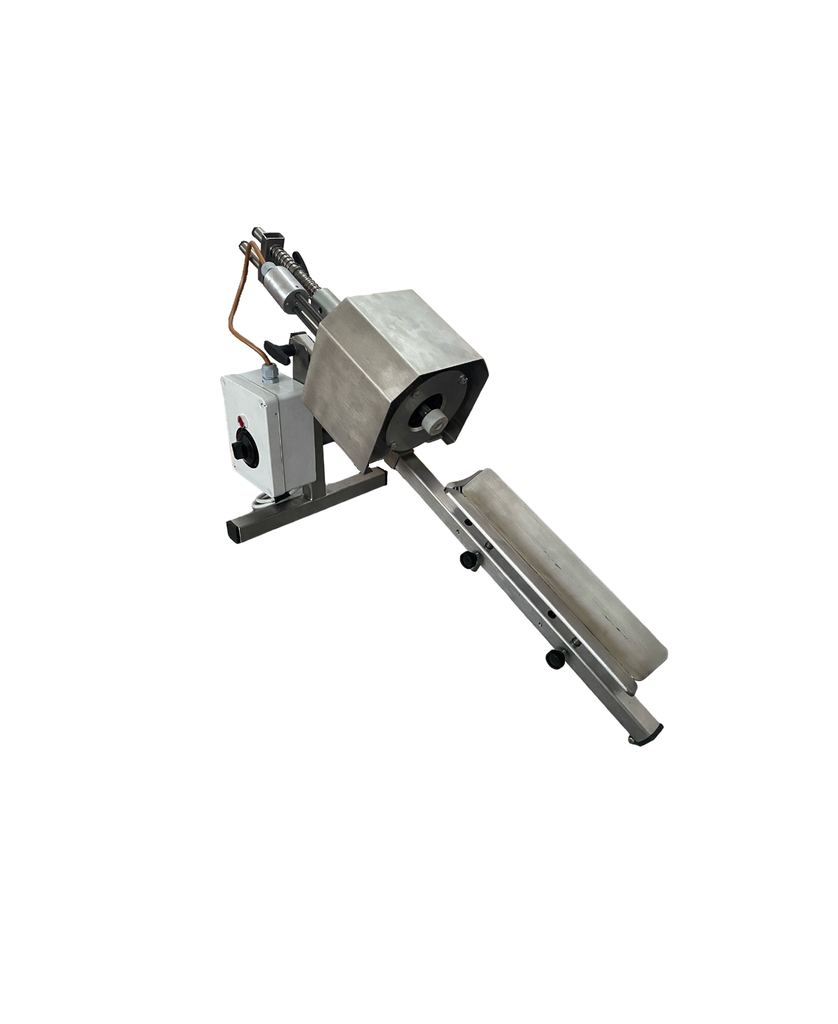

The capsule is fitted onto the neck of the bottle, and the 1,200 W heater compresses it around the neck; a clamp holds the capsule in place, whilst a control dial adjusts the heating. TESTA is a head designed for integration into a production line; SLITTA is mounted on a slide; in VERTICALE, the bottle is lifted by two levers; in PNEU, it is lifted pneumatically; MEGA VERT is designed for larger capsules.
Key specifications
- Type: heater for heat-shrinkable PVC capsules, 1200 W
- Capsule diameter: 42 mm (MEGA VERT — 46 mm)
- Neck diameter: 70 mm (MEGA VERT — 74 mm)
- Capsule height: 75 mm
- TESTA: up to 1,200 units per hour on the line
- SLITTA: bottles with a diameter of 60–140 mm
Applications
Capping of PVC capsules on wine and oil bottles in high-volume production facilities and on production lines.
Frequently asked questions
Which machine is suitable for 30×60 PVC capsules? The PVCPROF is suitable for necks up to 70 mm and capsules up to 42 mm; please check the capsule diameter against the table.
Are there versions for magnums? For larger capsules, there is the MEGA VERT with a capsule diameter of 46 mm.
What is TESTA? A head designed for integration into an automated production line, with a capacity of up to 1,200 units per hour.
