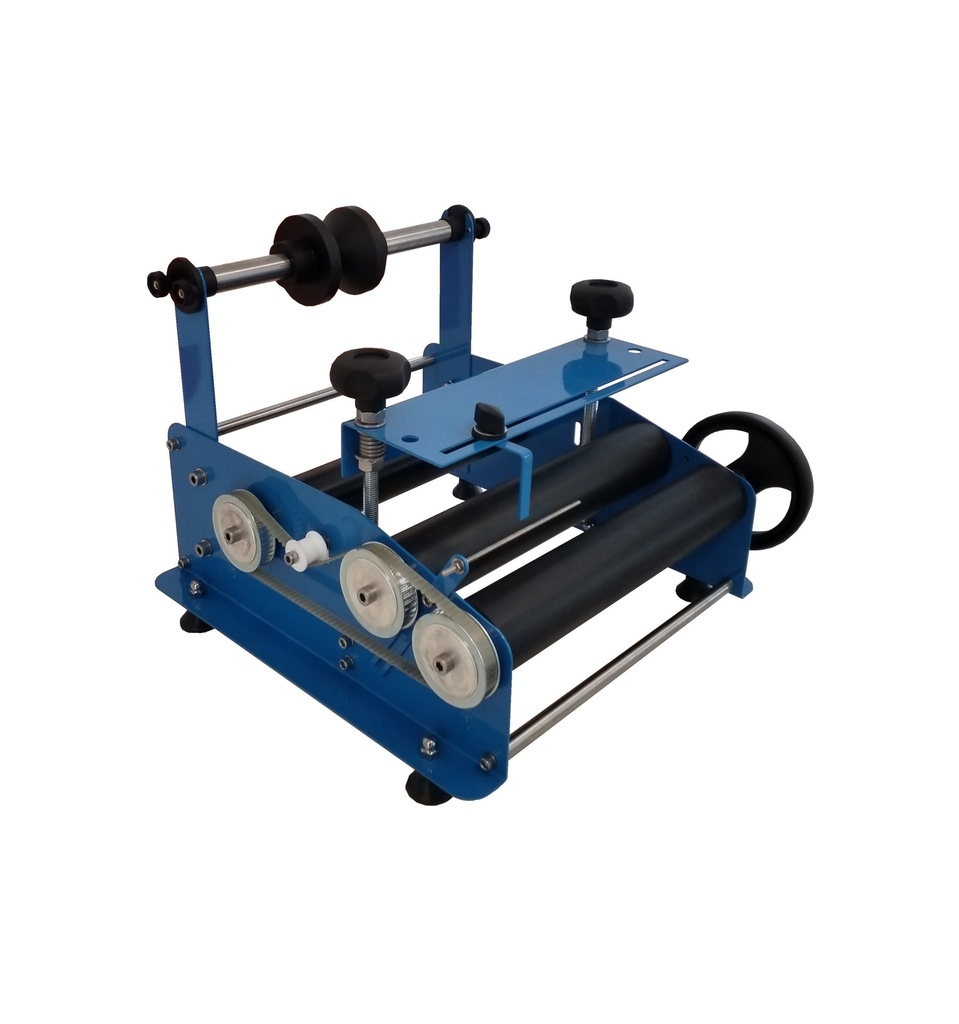

Labeling machine Spagni ADEMANO NEO • 21216a03

The Spagni ADEMANO NEO labelling machine is a hand-held device for applying self-adhesive labels to cylindrical containers: bottles, jars and tubes. This is the simplest model in the range, designed for small-scale production, home winemakers and workshops where a power supply is either unavailable or not required at the bottling site.

How it works

Movement is provided by a manual roller lever, so the machine operates without electricity. The self-adhesive label is fed from a roll, and if a pre-cut strip is available, the device applies both the label and the back label. Unlike the ADEMAX, which is also manual, the ADEMANO NEO is designed for taller labels: according to the manufacturer’s price list, the label height reaches 250 mm. Unlike the ADEMATIC and the desktop BIFIX and EDIAD models, this machine has neither a motor nor a photocell: the operating speed is set by the operator.

Key specifications

• Drive: manual roller lever
• Power supply: not required
• Material: painted metal
• Containers: cylindrical containers (bottles, jars, tubes), round bottles from 0.33 to 2 litres
• Maximum label height: up to 250 mm
• Outer roll diameter: 200 mm

Applications

This model is suitable for wine, beer, oil and other products in round containers where volumes are small, and – most importantly – for its simplicity and independence from a mains power supply. It is also handy as a backup labelling line in a workshop or at a tasting area.

Frequently asked questions

Does it require electricity? No, the machine is operated by a manual roller lever.

Can a back label be applied? Yes, provided the tape is suitable for both the main label and the back label.

What types of containers is it designed for? Cylindrical ones: bottles, jars, tubes. For square bottles, see the ADEMAX TQ version or the TQ desktop models.
