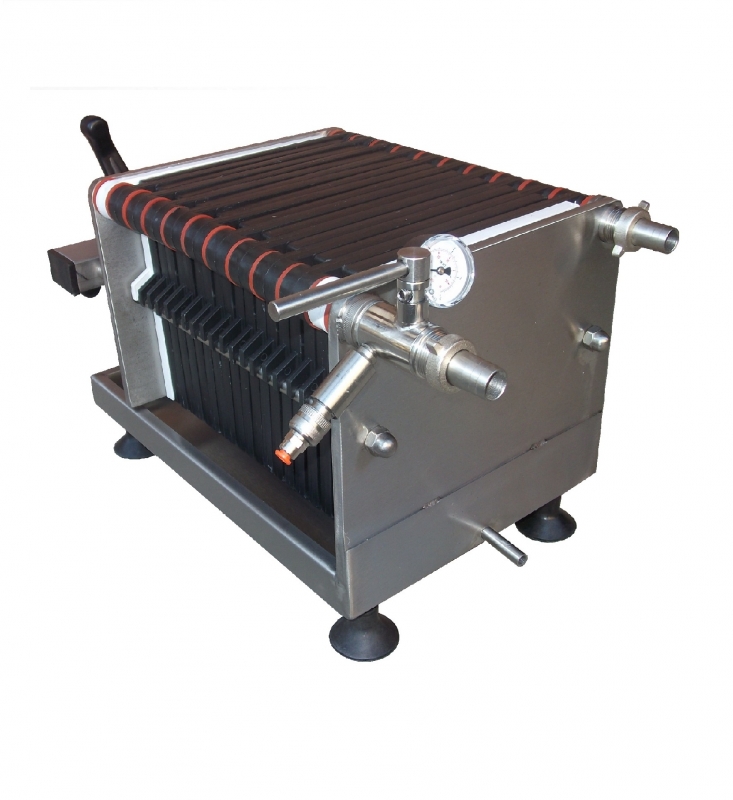

Spagni MONACO M cardboard filter
The Spagni MONACO M cardboard filter is a tabletop filter for 20 × 20 cm cardboard filters, without a pump. Designed for clarifying wine, vinegar, beer, liqueurs and juices; an oil version is available separately (MONACO M OIL).
Principle of operation
The liquid passes through a pack of cellulose filter papers clamped between food-grade plastic plates; the degree of clarification depends on the grade of filter paper. Feed is by gravity or via an external pump. The pack is compressed by a central screw. This model differs from the MONACO ME in that it lacks a pump, and from the OIL model in that it includes a set of cardboard sheets for wine and a set of gaskets. The set includes a central screw, cardboard sheets for wine clarification and spare gaskets.
Key specifications
- Filter paper size: 20 × 20 cm
- Filtration area: M10 – 0.38 m², M20 – 0.76 m², M30 – 1.11 m²
- Frame: AISI 304 stainless steel
- Plates: food-grade plastic
- Pump: not included
- Fittings: chrome-plated brass Ø15 mm; stainless steel — optional
- Option: dual filtration kit
Applications
For small wineries, home producers and laboratories. Two-stage filtration (coarse and fine filters) is configured using the dual filtration kit.
Frequently asked questions
Does it come with a pump? No, the filter operates by gravity or with an external pump.
Which surface area should I choose? For larger volumes, choose a larger one: 0.38, 0.76 or 1.11 m².
Is it suitable for oil? The MONACO M OIL is designed for oil.
