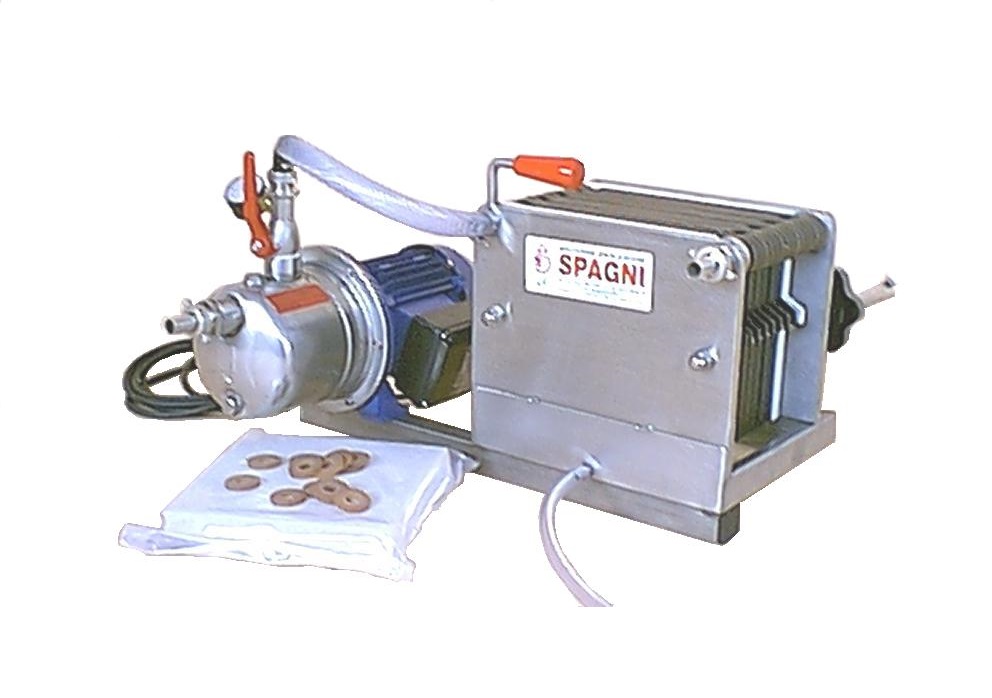

Spagni SYDNEY cardboard filter
The Spagni SYDNEY cardboard filter is a compact benchtop filter designed for 20 × 20 cm cardboard filters, featuring a 230 V centrifugal electric pump. It is suitable for laboratories, small wineries and juice producers.
How it works
The pump feeds the liquid through a stack of filter sheets, which are compressed by two clamping flywheels. The frame is made of AISI 304 stainless steel, the plates are made of food-grade plastic, and the fittings are made of chrome-plated brass, Ø15 mm (stainless steel ME-SYD — optional). Compared to the MONACO ME, which comes in three sizes up to 1.11 m², the SYDNEY is smaller: the E6 and E10 models accommodate 6 and 10 cartons respectively.
Key specifications
- Cardboard sheet size: 20 × 20 cm
- Filter area: E6 — 0.22 m², E10 — 0.38 m²
- Power supply: 230 V, 50 Hz
- Frame: AISI 304 stainless steel
- Plates: food-grade plastic
- Filter pack clamping: 2 handwheels
Applications
For clarifying wine, vinegar, beer, liqueurs and juices in small batches.
Frequently asked questions
How many cartons? 6 (E6) or 10 (E10).
Is there a pump? Yes, 230 V.
What type of fittings? Chrome-plated brass, Ø15 mm; stainless steel — optional.
