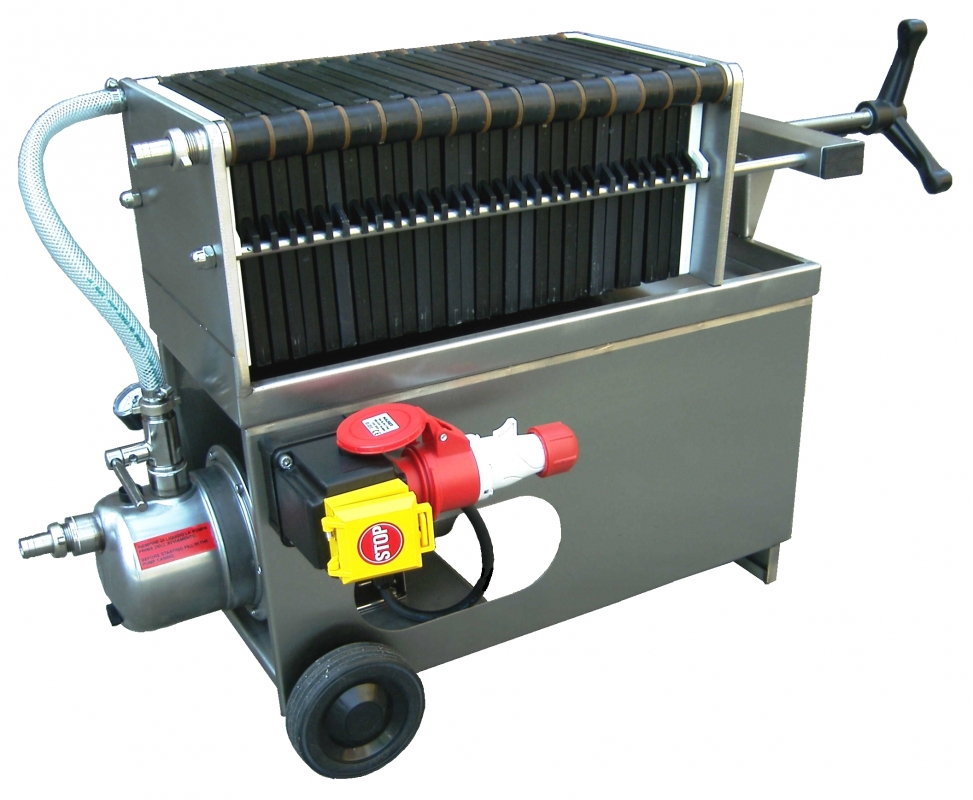

Spagni MONACO ME cardboard filter
The Spagni MONACO ME cardboard filter is a trolley-mounted model with a 230 V stainless steel electric pump, designed for 20 × 20 cm cardboard sheets. Suitable for wineries and small-scale producers requiring a ready-to-use unit.
How it works
The pump feeds the liquid through a stack of filter cartons, which is compressed by a central screw. The AISI 304 stainless steel frame is mounted on wheels, and a pressure gauge is fitted at the inlet. The ME model differs from the MONACO M – which operates by gravity or with an external pump – in that it features a built-in pump and a trolley. Options: a dual-filtration kit (coarse and fine filtration in a single pass) and an OIL system kit.
Key specifications
- Carton size: 20 × 20 cm
- Filtration area: ME10 — 0.38 m², ME20 — 0.76 m², ME30 — 1.11 m²
- Power supply: 230 V, 50 Hz
- Frame: AISI 304 stainless steel, on a trolley
- Plates: food-grade plastic
- Fittings: chrome-plated brass Ø15 mm; stainless steel ME-SYD — optional
Applications
For clarifying and filtering wine, vinegar, beer, liqueurs and juices; with the OIL kit — also oils.
Frequently asked questions
Is there a pump? Yes, a 230 V stainless steel electric pump.
Can oil be filtered? Yes, with the OIL system kit.
How does it differ from the SYDNEY? The ME has filter areas of 0.38–1.11 m² and a trolley, whilst the SYDNEY has areas of 0.22 and 0.38 m².
