Spagni MONACO M OIL cardboard filter

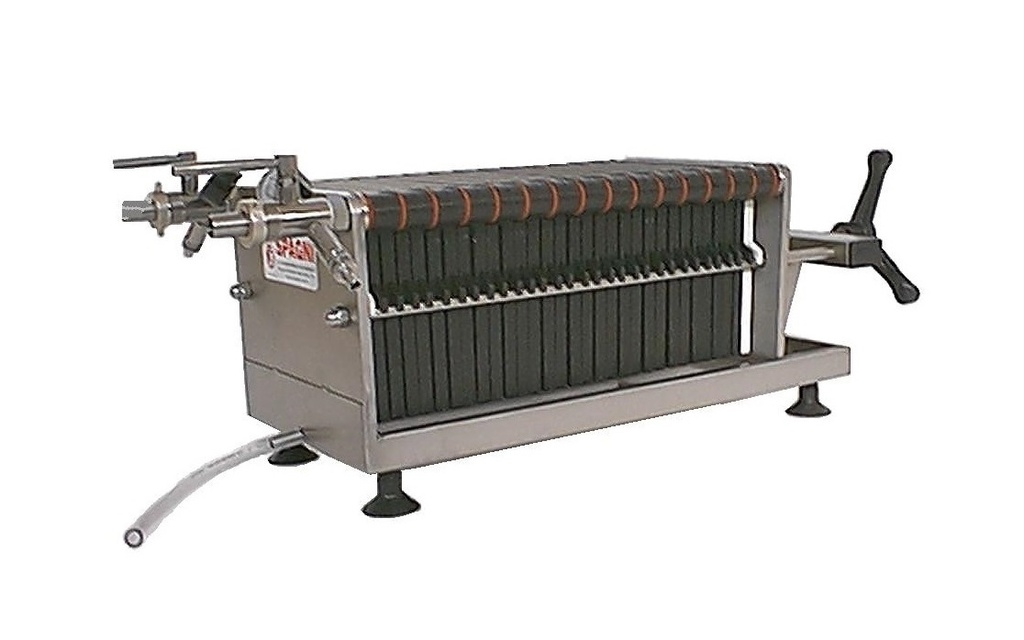

The Spagni MONACO M OIL cardboard filter is a tabletop filter for oils: olive, sunflower, maize, seed and peanut. The frame is made of AISI 304 stainless steel.
How it works

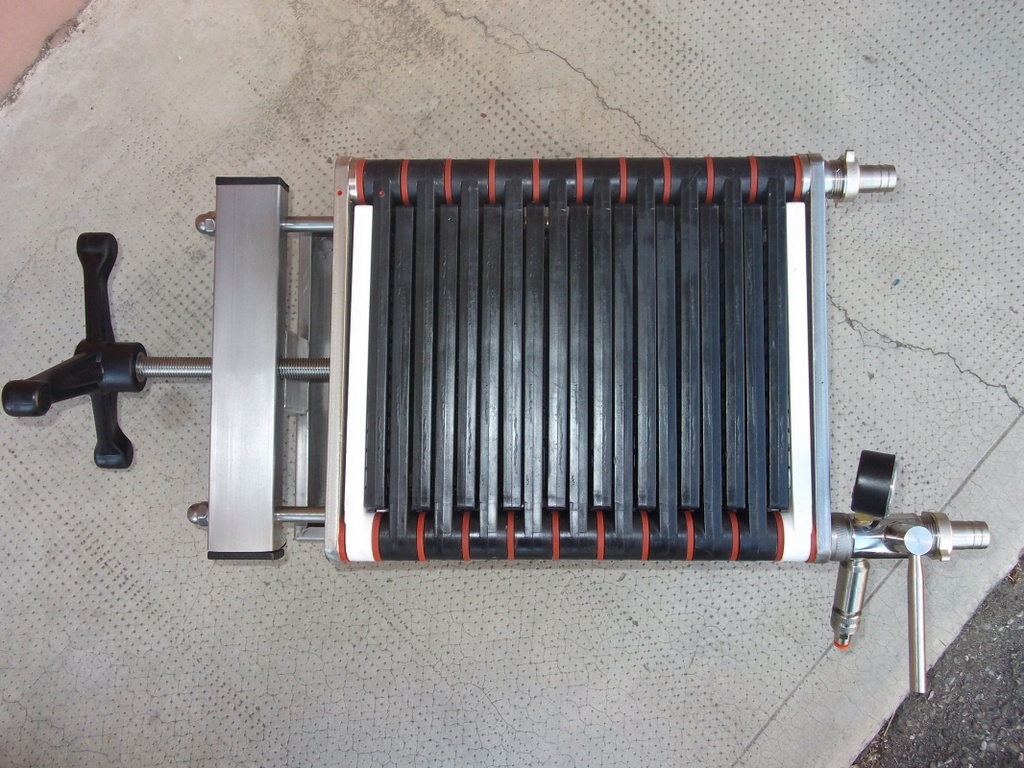

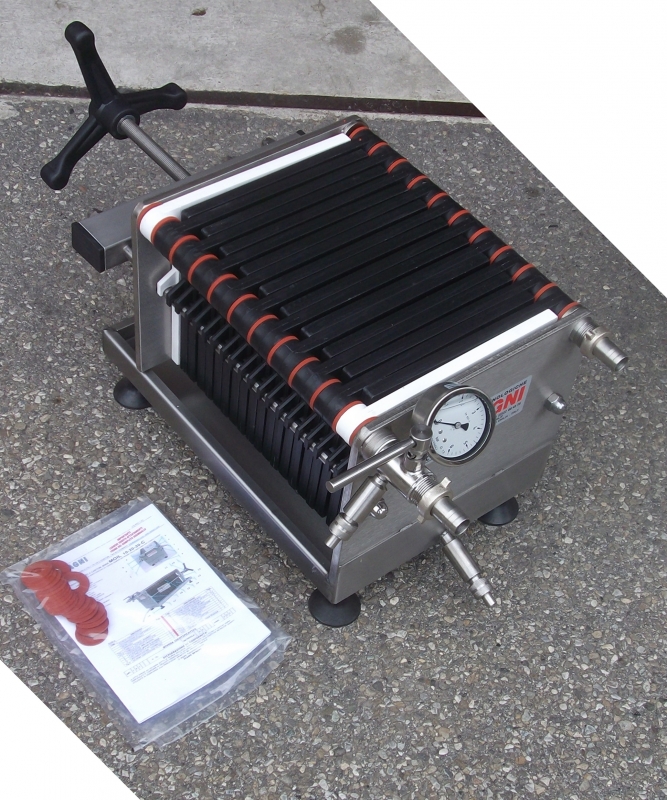

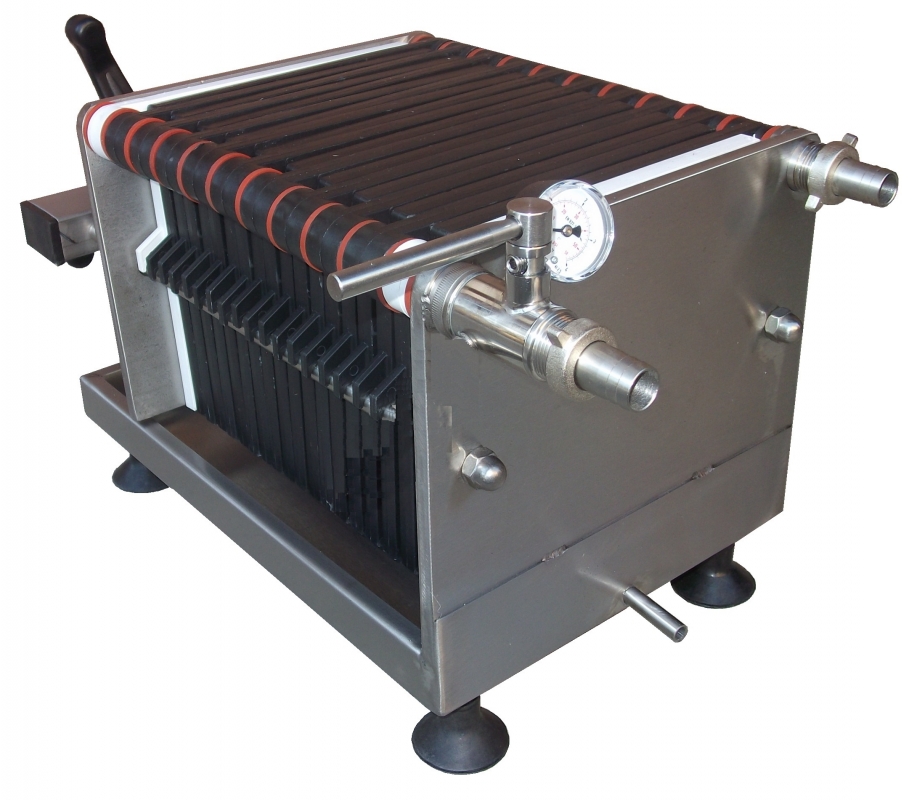

The oil passes through a pack of 20 × 20 cm cardboard sheets. The design is adapted for fatty substances: 4 mm silicone gaskets, plates without support teeth, a drip tray with a tube and four suction cup supports. At the inlet there is a ¾″ ball valve with a pressure gauge and a needle valve; at the outlet there is a ¾″ ball valve with a sampling tap. The pump is not included in the set. The OIL version differs from the MONACO M specifically in these components and the oil filter cartridges (SUPER OLIO and OV110).
Key specifications
- Filter cartridge dimensions: 20 × 20 cm
- Filtration area: M10 OIL — 0.38 m², M20 OIL — 0.76 m², M30 OIL — 1.11 m²
- Frame: AISI 304 stainless steel
- Seals: 4 mm silicone
- Plates: food-grade plastic, without teeth
- Pump: not included
- Pressure gauge and sampling tap: included
Applications
For small oil mills and farms that filter oil after settling. For wine and other beverages, choose the MONACO M.
Frequently asked questions
Which oils is it suitable for? Olive, sunflower, maize, seed and peanut oils.
Does it come with a pressure gauge? Yes, along with a sampling tap.
Is a pump required? It is not included in the set.
